Find the minimum values in an input or sequence of inputs.
Library
Description
The Minimum block identifies the value and position of the smallest element in each column of the input, or tracks the minimum values in a sequence of inputs over a period of time. The Mode parameter specifies the block's mode of operation, and can be set to Value, Index, Value and Index, or Running.
Value Mode
When Mode is set to Value, the block computes the minimum value in each column of the M-by-N input matrix u
independently at each sample time.
For convenience, length-M 1-D vector inputs and sample-based length-M row vector inputs are both treated as M-by-1 column vectors.
The output at each sample time, val
, is a 1-by-N vector containing the minimum value of each column in u

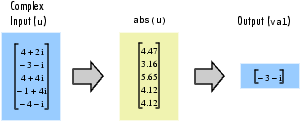

. For complex inputs, the block selects the value in each column that has the minimum magnitude, min(abs(u))
, as shown below.
The frame status of the output is the same as that of the input.
Index Mode
When Mode is set to Index, the block computes the minimum value in each column of the M-by-N input matrix u
,
and outputs the sample-based 1-by-N index vector, idx
. Each value in idx
is an integer in the range [1
M]
indexing the minimum value in the corresponding column of u
. When inputs to the block are double-precision values, the index values are double-precision values. Otherwise, the index values are 32-bit unsigned integer values.
As in Value mode, length-M 1-D vector inputs and sample-based length-M row vector inputs are both treated as M-by-1 column vectors.
If a minimum value occurs more than once in a particular column of u
, the computed index corresponds to the first occurrence. For example, if the input is the column vector [-1 2 3 2 -1]'
, the computed index of the minimum value is 1
rather than 5
.
Value and Index Mode
When Mode is set to Value and Index, the block outputs both the vector of minima, val
, and the vector of indices, idx
.
Running Mode
When Mode is set to Running, the block tracks the minimum value of each channel in a time-sequence of M-by-N inputs. For sample-based inputs, the output is a sample-based M-by-N matrix with each element yij containing the minimum value observed in element uij for all inputs since the last reset. For frame-based inputs, the output is a frame-based M-by-N matrix with each element yij containing the minimum value observed in the jth column of all inputs since the last reset, up to and including element uij of the current input.
As in the other modes, length-M 1-D vector inputs and sample-based length-M row vector inputs are both treated as M-by-1 column vectors.
Resetting the Running Minimum. The block resets the running minimum whenever a reset event is detected at the optional Rst
port. The rate of the reset signal must be a positive integer multiple of the rate of the data signal input.
When the block is reset for sample-based inputs, the running minimum for each channel is initialized to the value in the corresponding channel of the current input. For frame-based inputs, the running minimum for each channel is initialized to the earliest value in each channel of the current input.
The reset event is specified by the Reset port parameter, and can be one of the following:
Rst
port.
Rst

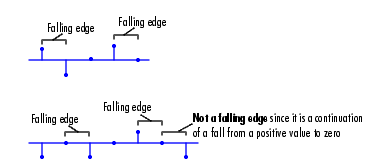

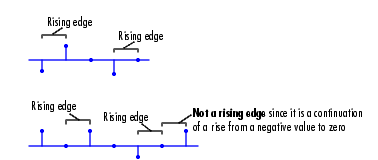

input does one of the following:
Rst
input does one of the following:
Rst
input is a Rising edge or Falling edge (as described above).
Rst
input is not zero.
Note When running simulations in the Simulink MultiTasking mode, sample-based reset signals have a one-sample latency, and frame-based reset signals have one frame of latency. Thus, there is a one-sample or one-frame delay between the time the block detects a reset event, and when it applies the reset. For more information on latency and the Simulink tasking modes, see Excess Algorithmic Delay (Tasking Latency) and the topic on the Simulation Parameters dialog box in the Simulink documentation. |
Example

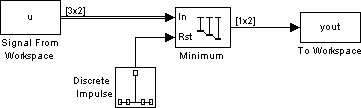

The Minimum block in the model below calculates the running minimum of a frame-based 3-by-2 (two-channel) matrix input. The running minimum is reset at t=2 by an impulse to the block's Rst
port.
The Minimum block has the following settings:
The Signal From Workspace block has the following settings:
The Discrete Impulse block has the following settings:

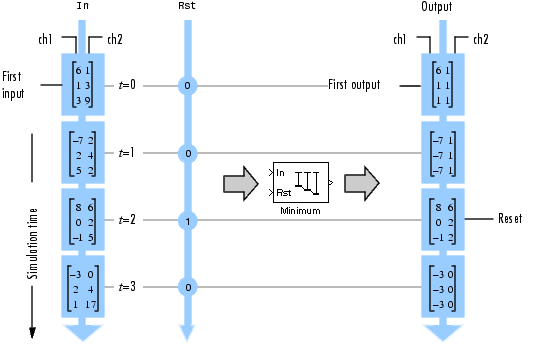

The block's operation is shown in the figure below.

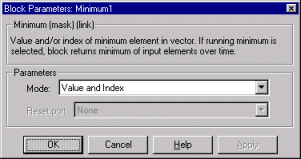

Dialog Box
Supported Data Types
Rst
port.
To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.
See Also
Maximum |
DSP Blockset |
Mean |
DSP Blockset |
MinMax |
Simulink |
Histogram |
DSP Blockset |
min |
MATLAB |
Also see Statistics for a list of all the blocks in the Statistics library.
