Signal From Workspace (DSP Blockset)

Import a signal from the MATLAB workspace.

Library

Description

The Signal From Workspace block imports a signal from the MATLAB workspace into the Simulink model. The Signal parameter specifies the name of a MATLAB workspace variable containing the signal to import, or any valid MATLAB expression defining a matrix or 3-D array.

When the Signal parameter specifies an M-by-N matrix (M1), each of the N columns is treated as a distinct channel. The frame size is specified by the Samples per frame parameter, M_o, and the output is an M_o-by-N matrix containing M_o consecutive samples from each signal channel. The output sample period is specified by the Sample time parameter, T_s, and the output frame period is M_o*T_s. For M_o=1, the output is sample-based; otherwise the output is frame-based. For convenience, an imported row vector (M=1) is treated as a single channel, so the output dimension is M_o-by-1.

When the Signal parameter specifies an M-by-N-by-P array, each of the P pages (an M-by-N matrix) is output in sequence with period T_s. The Samples per frame parameter must be set to 1, and the output is always sample-based.

Initial and Final Conditions

Unlike the Simulink From Workspace block, the Signal From Workspace block holds the output value constant between successive output frames (i.e., no linear interpolation takes place). Additionally, the initial signal values are always produced immediately at t=0.

When the block has output all of the available signal samples, it can start again at the beginning of the signal, or simply repeat the final value or generate zeros until the end of the simulation. (The block does not extrapolate the imported signal beyond the last sample.) The Form output after final data value by parameter controls this behavior:

If Setting To Zero is specified, the block generates zero-valued outputs for the duration of the simulation after generating the last frame of the signal.
If Holding Final Value is specified, the block repeats the final sample for the duration of the simulation after generating the last frame of the signal.
If Cyclic Repetition is specified, the block repeats the signal from the beginning after it reaches the last sample in the signal.

Examples

Example 1

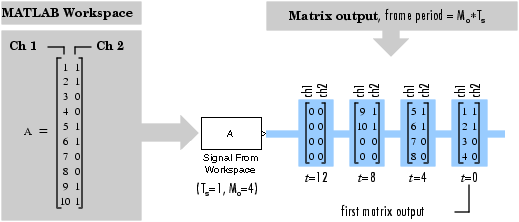

In the first model below, the Signal From Workspace imports a two-channel signal from the workspace matrix A. The Sample time is set to 1 and the Samples per frame is set to 4, so the output is frame-based with a frame size of 4 and a frame period of 4 seconds. The Form output after final data value by parameter specifies Setting To Zero, so all outputs after the third frame (at t=8) are zero.

Example 2

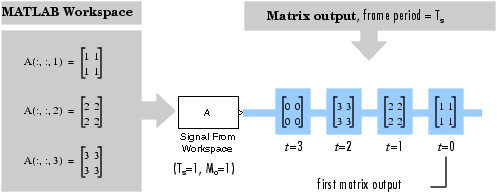

In the second model below, the Signal From Workspace block imports a sample-based matrix signal from the 3-D workspace array A. Again, the Form output after final data value by parameter specifies Setting To Zero, so all outputs after the third (at t=2) are zero.

The Samples per frame parameter is set to 1 for 3-D input.

Dialog Box

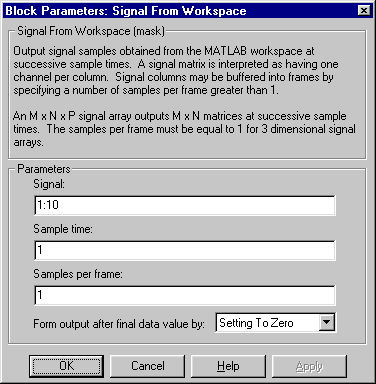

Signal: The name of the MATLAB workspace variable from which to import the signal, or a valid MATLAB expression specifying the signal.
Sample time: The sample period, T_s, of the output. The output frame period is M_o*T_s.
Samples per frame: The number of samples, M_o, to buffer into each output frame. This value must be 1 if a 3-D array is specified in the Signal parameter.
Form output after final data value by: Specifies the output after all of the specified signal samples have been generated. The block can output zeros for the duration of the simulation (Setting to zero), repeat the final data sample (Holding Final Value) or repeat the entire signal from the beginning (Cyclic Repetition). Tunable.

Supported Data Types

Double-precision floating point
Single-precision floating point

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

From Wave Device
DSP Blockset

From Wave File
DSP Blockset

Signal From Workspace
DSP Blockset

To Workspace
Simulink

Triggered Signal From Workspace
DSP Blockset

From Wave Device	DSP Blockset
From Wave File	DSP Blockset
Signal From Workspace	DSP Blockset
To Workspace	Simulink
Triggered Signal From Workspace	DSP Blockset
