LU Factorization

Factor a square matrix into lower and upper triangular components.

Library

Math Functions / Matrices and Linear Algebra / Matrix Factorizations

Description

The LU Factorization block factors a row permutation of the square input matrix A as

where L is a lower-triangular square matrix with unity diagonal elements, and U is an upper-triangular square matrix. The row-pivoted matrix Ap contains the rows of A permuted as indicated by the permutation index vector P.

The output at the LU port is a composite matrix with lower subtriangle elements from L and upper triangle elements from U, and is always sample-based.

Example

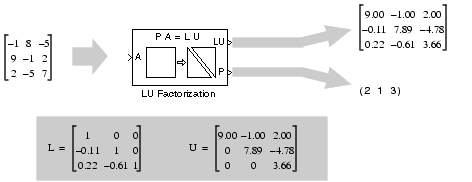

The row-pivoted matrix Ap and permutation index vector P computed by the block are shown below for 3-by-3 input matrix A.

The LU output is a composite matrix whose lower subtriangle forms L and whose upper triangle forms U.

Dialog Box

.

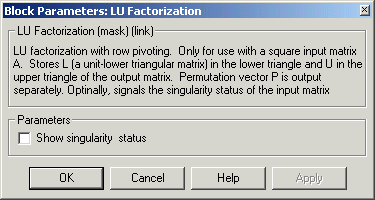

Show singularity status
When selected, the block indicates the singularity of the input at a third output port labeled S, which outputs Boolean data type values of 1 or 0. An output of 1 indicates that the current input is singular, and an output of 0 indicates the current input is nonsingular.

References

Golub, G. H., and C. F. Van Loan. Matrix Computations. 3rd ed. Baltimore, MD: Johns Hopkins University Press, 1996.

Supported Data Types
