Disassembled Cylindrical

Represent a disassembled cylindrical joint, with one translational DoF and one rotational DoF along and about misaligned axes, with no constraints

Library

Joints/Disassembled Joints

Description

The Disassembled Cylindrical block represents a composite joint, one translational and one rotational degrees of freedom (DoF) along and about a pair of specified misaligned axes between two bodies. SimMechanics automatically assembles (aligns) the two axes at simulation start.

A cylindrical joint is composite, with two DoFs and a single specified axis: a prismatic primitive translating along the axis, and a revolute primitive rotating about the axis. There are no constraints between the two primitives.

This block is disassembled: you must connect each side of the Joint block to a Body block at a Body coordinate system (CS) point, but the origins of these Body CSs do not need to be spatially collocated points or lie along a joint axis.

You can connect any Joint block to two and only two Body blocks, and Joints have a default of two Connector Ports for connecting to base and follower Bodies. The disassembled translation-rotation joint axes are associated with the base and follower Bodies, respectively.

You can only use a Disassembled Joint block to close a loop. One loop must have no more than one disassembled joint. You cannot connect a Disassembled Joint to an Actuator or Sensor block.

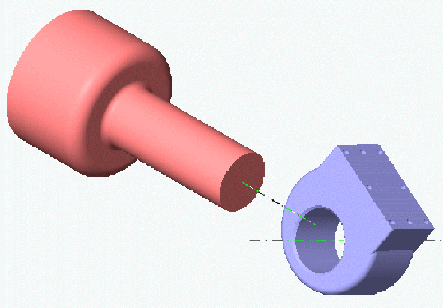

Disassembled cylindrical axes of follower (blue) and base (red)

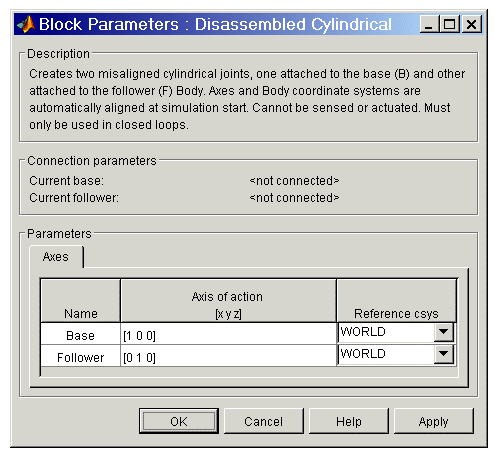

Dialog Box and Parameters

The dialog box has two active areas, Connection parameters and Parameters.

Connection Parameters

Current base
When you connect the base (B) Connector Port on the Disassembled Cylindrical block to a Body CS Port on a Body, this parameter is automatically reset to the name of this Body CS. See the following Disassembled Cylindrical base and follower Body Connector Ports figure.
Current follower
When you connect the follower (F) Connector Port on the Disassembled Cylindrical block to a Body CS Port on a Body, this parameter is automatically reset to the name of this Body CS. See the following Disassembled Cylindrical base and follower Body Connector Ports figure.

Disassembled Cylindrical base and follower Body Connector Ports

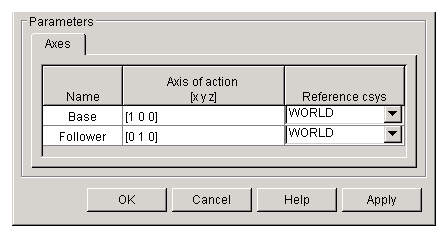

Parameters

There is one Axes panel.

The entries on the Axes pane are required. They specify the directions of the two misaligned axes of the translational-rotational DoFs that the Disassembled Cylindrical represents.

Name
This column automatically displays the names of the two misaligned rotation axes attached to base and follower bodies, respectively.
Axis of action [x y z]
Enter here as two three-component vectors the two misaligned directional axes along and about which the base and follower bodies respectively can translate and rotate. The default vectors are [1 0 0] and [0 1 0], respectively. The axes are directed vectors whose overall signs matter.
Reference csys
Using the pull-down menu, choose the coordinate systems (World, the base Body CS, or the follower Body CS) whose coordinate axes the two vector axes of translation-rotation are oriented with respect to. The defaults are WORLD.

See Also

Cylindrical, Disassembled Prismatic, Disassembled Revolute, Disassembled Spherical

See Modeling Joints for more on representing DoFs with Disassembled Joints.

See Checking Schematic Topology and How SimMechanics Works for more on closed loops and cutting disassembled joints.
