Check Signal Attributes
Generate an error when the input signal does or does not match selected attributes exactly.
Library
Signal Management / Signal Attributes
Description

The Check Signal Attributes block terminates the simulation with an error when the input characteristics differ from those specified by the block parameters.
When the Error if input parameter is set to Does not match attributes exactly, the block generates an error only when the input possesses none of the attributes specified by the other parameters. Signals that possess at least one of the specified attributes are propagated to the output unaltered, and do not generate an error.
When the Error if input parameter is set to Matches attributes exactly, the block generates an error only when the input possesses all attributes specified by the other parameters. Signals that do not possess all of the specified attributes are propagated to the output unaltered, and do not generate an error.
Signal Attributes
The Check Signal Attributes block can test for up to five different signal attributes, as specified by the following parameters. When Ignore is selected in any parameter, the block does not check the signal for the corresponding attribute. For example, when Complexity is set to Ignore, neither real nor complex inputs cause the block to generate an error. The attributes are:
- Checks whether the signal is real or complex. (Note that this information can also be displayed in a model by attaching a Probe block with Probe complex signal selected, or by selecting Port data types from the model window's Format menu.)
- Checks whether the signal is frame-based or sample-based. (Note that Simulink displays sample-based signals using a single line,
, and frame-based signals using a double line,
.)
- Checks the dimension of signal for compliance (Is...) or noncompliance (Is not...) with the attributes in the subordinate Dimension menu, which are shown in the table below. SeeSignal Dimension Nomenclature for a description of Simulink signal dimensions. M and N are positive integers unless otherwise indicated below.
Dimensions
|
Is...
|
Is not...
|
1-D
|
1-D vector, 1-D scalar
|
M-by-N matrix, 1-by-N matrix (row vector), M-by-1 matrix (column vector), 1-by-1 matrix (2-D scalar)
|
2-D
|
M-by-N matrix, 1-by-N matrix (row vector), M-by-1 matrix (column vector), 1-by-1 matrix (2-D scalar)
|
1-D vector, 1-D scalar
|
Scalar (1-D or 2-D)
|
1-D scalar, 1-by-1 matrix (2-D scalar)
|
1-D vector with length>1, M-by-N matrix with M>1 and/or N>1
|
Vector (1-D or 2-D)
|
1-D vector, 1-D scalar, 1-by-N matrix (row vector), M-by-1 matrix (column vector), 1-by-1 matrix (2-D scalar) Vector (1-D or 2-D) or scalar
|
M-by-N matrix with M>1 and N>1
|
Row Vector (2-D)
|
1-by-N matrix (row vector), 1-by-1 matrix (2-D scalar) Row vector (2-D) or scalar
|
1-D vector, 1-D scalar, M-by-N matrix with M>1
|
Column Vector (2-D)
|
M-by-1 matrix (column vector), 1-by-1 matrix (2-D scalar) Column vector (2-D) or scalar
|
1-D vector, 1-D scalar, M-by-N matrix with N>1
|
Full matrix
|
M-by-N matrix with M>1 and N>1
|
1-D vector, 1-D scalar, 1-by-N matrix (row vector), M-by-1 matrix (column vector), 1-by-1 matrix (2-D scalar)
|
Square matrix
|
M-by-N matrix with M=N, 1-D scalar, 1-by-1 matrix (2-D scalar)
|
M-by-N matrix with M N, 1-D vector, 1-by-N matrix (row vector), M-by-1 matrix (column vector)
|
Note that when Signal dimensions is selected from the model window Format menu, Simulink displays the size of a 1-D vector signal as an unbracketed integer, and displays the dimension of a 2-D signal as a pair of bracketed integers, [MxN]
. Simulink does not display any size information for a 1-D or 2-D scalar signal. Dimension information for a signal can also be displayed in a model by attaching a Probe block with Probe signal dimensions selected.
- Checks whether the signal is discrete-time or continuous-time. (Note that when Sample time colors is selected from the Format menu, Simulink displays continuous-time signal lines in black or grey and discrete-time signal lines in colors corresponding to the relative rate. When a Probe block with Probe sample time enabled is attached to a continuous-time signal, the block icon displays the string
Ts:[0 x]
, where x
is the sample time offset. When a Probe block is attached to a discrete-time signal, the block icon displays the string Ts:[t 0]
for a sample-based signal or Tf:[t 0]
for a frame-based signal, where t
is the nonzero sample period or frame period, respectively. Frame-based signals are almost always discrete-time.)

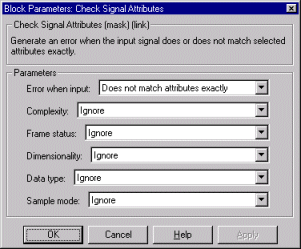

Dialog Box

- Error if input
- Specifies whether the block generates an error when the input possesses none of the required attributes (Does not match attributes exactly), or when the input possesses all of the required attributes (Matches attributes exactly).
- Complexity
- The complexity for which the input should be checked, Real or Complex.
- Frame status
- The frame status for which the input should be checked, Sample-based or Frame-based.
- Dimensionality
- Specifies whether the input should be checked for compliance (Is...) or noncompliance (Is not...) with the attributes in the subordinate Dimension menu.
- Dimensions
- The dimensions for which the input should be checked. This parameter is available when Is... or Is not... is selected in the Dimensionality menu.
- Data type
- Specifies whether the input should be checked for compliance (Is...) or noncompliance (Is not...) with the attributes in the subordinate General data type menu.
- General data type
- The general data type for which the input should be checked. This parameter is available when Is... or Is not... is selected in the Data type menu, and enables the subordinate Specific data type parameter in most cases.
- Specific data type
- The specific data type for which the input should be checked. This parameter is available when Floating-point, Fixed-point, or Integer is selected in the General data type menu.
- Sample mode
- The sample mode for which the input should be checked, Discrete or Continuous.
Supported Data Types
- Double-precision floating point
- Single-precision floating point
- Fixed-point
- Custom data types
- Boolean
- 8-, 16-, and 32-bit signed integers
- 8-, 16-, and 32-bit unsigned integers
To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.
See Also
Also see Signal Attributes for a list of all the blocks in the Signal Attributes library.
