Convert 1-D to 2-D (DSP Blockset)

Reshape a 1-D or 2-D input to a 2-D matrix with the specified dimensions.

Library

Description

The Convert 1-D to 2-D block reshapes a length-M_i 1-D vector or an M_i-by-N_i matrix to an M_o-by-N_o matrix, where M_o is specified by the Number of output rows parameter, and N_o is specified by the Number of output columns parameter.

y = reshape(u,Mo,No)         % Equivalent MATLAB code

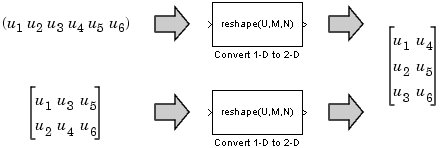

The input is reshaped columnwise, as shown in the two cases below. The length-6 vector and the 2-by-3 matrix are both reshaped to the same 3-by-2 output matrix.

An error is generated if (M_o*N_o)(M_i*N_i). That is, the total number of input elements must be conserved in the output.

The output is frame-based if the Frame-based output check box is selected; otherwise, the output is sample-based.

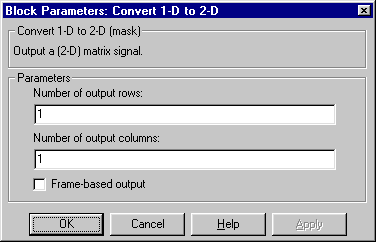

Dialog Box

Number of output rows: The number of rows, M_o, in the output matrix. Tunable.
Number of output columns: The number of rows, N_o, in the output matrix. Tunable.
Frame-based output: Creates a frame-based output when selected. Tunable.

Supported Data Types

Double-precision floating point
Single-precision floating point
Fixed-point
Custom data types
Boolean
8-, 16-, and 32-bit signed integers
8-, 16-, and 32-bit unsigned integers

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

Buffer
DSP Blockset

Convert 2-D to 1-D
DSP Blockset

Frame Status Conversion
DSP Blockset

Reshape
Simulink

Submatrix
DSP Blockset

Buffer	DSP Blockset
Convert 2-D to 1-D	DSP Blockset
Frame Status Conversion	DSP Blockset
Reshape	Simulink
Submatrix	DSP Blockset

Also see Signal Attributes for a list of all the blocks in the Signal Attributes library.
