TouCAN Transmit
Transmit a CAN message via a TouCAN module on the MPC555
Library
Embedded Target for Motorola MPC555
Description
The TouCAN Transmit block transmits a CAN message onto the CAN bus. The TouCAN Transmit block uses the queue set up by the MPC555 Resource Configuration object (see MPC555 Resource Configuration).

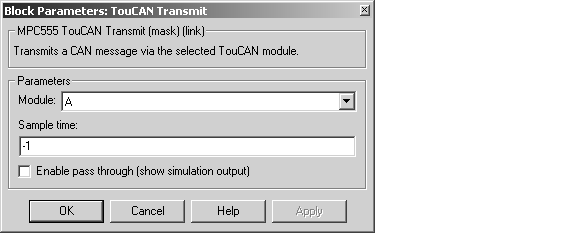

Dialog Box
- Module
- Selects one of the two TouCAN modules (A or B) on the MPC555.
- Sample time
- Choose -1 to inherit the sample time from the driving blocks. The TouCAN Transmit block does not inherit constant sample times and runs at the base rate of the model if driven by invariant signals.
- Enable pass through (show simulation input)
- Lets you provide a signal from this block for use in simulation. When this option is enabled, an outport appears on the block. The block input is passed through, unaltered, to the output during simulation. This option affects simulation only.
