TouCAN Warnings

Flag excessively high transmit or receive error counts on TouCAN modules

Library

Embedded Target for Motorola MPC555

Description

The TouCAN Warnings block has two logical outputs, RX and TX. If the transmit error counter is over 95, then the TX output goes high. If the receive error counter is over 95, then the RX output goes high.

Use this block, in conjunction with a TouCAN Error Count block, to monitor error conditions on a selected TouCAN module.

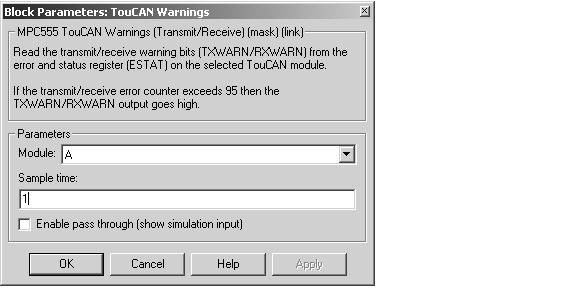

Dialog Box

Module

Select TouCAN module A or B.

Sample time

Sample time of the block.

Enable pass through (show simulation input)

Lets you provide signals to this block for use in simulation. When this option is enabled, inports appear on the block. The block inputs are passed through, unaltered, to the output during simulation. This option affects simulation only.
