TouCAN Error Count

Count transmit and/or receive errors detected on selected TouCAN modules

Library

Embedded Target for Motorola MPC555

Description

The TouCAN Error Count block maintains and reports a count of errors detected by the selected TouCAN module during receive and transmit. The receive and transmit error counts are output to the RX and TX outputs of the block, respectively.

The error counts also drive the TouCAN Warnings block outputs. (See TouCAN Warnings.)

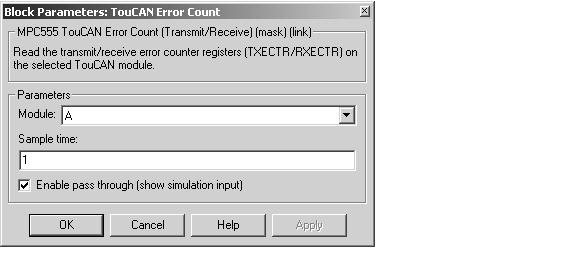

Dialog Box

Module

Select TouCAN module A or B.

Sample time

Sample time of the block.

Enable pass through (show simulation input)

Lets you provide a signal to this block for use in simulation. When this option is enabled, inports appear on the block. The block inputs are passed through, unaltered, to the outputs during simulation. This option affects simulation only.
