TouCAN Fault Confinement State

Indicate the state of a TouCAN module

Library

Embedded Target for Motorola MPC555

Description

The TouCAN Fault Confinement State block provides an indicator for the state of the selected TouCAN module. The block obtains and outputs a field of two bits from the TouCAN module's Error and Status (ESTAT) register. The possible states are shown in Table 5-4.

Refer to section 16, "CAN 2.0B Controller Module," in the MPC555 Users Manual for further information.

Table 5-4: FCS State Values

State	Value	Description
Error Active	00	Normal operation
Error Passive	01	Listening only mode. The device cannot transmit.
Bus Off	1x	The device is not allowed to transmit or receive and is effectively cut off from the bus.

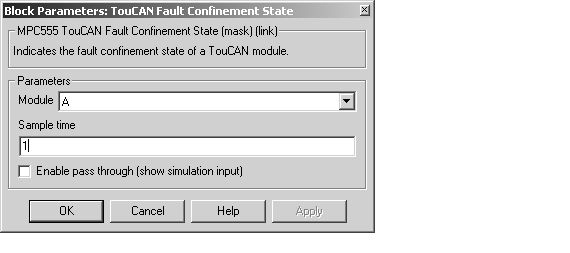

Dialog Box

Module

Select TouCAN module A or B.

Sample time

Sample time of the block.

Enable pass through (show simulation input)

Lets you provide a signal to this block for use in simulation. When this option is enabled, an inport appears on the block. The block input is passed through, unaltered, to the output during simulation. This option affects simulation only.
