DSP Blockset

Constant Ramp

Generate a ramp signal with length based on input dimensions.

Library
DSP Sources

Description

The Constant Ramp block generates the constant ramp signal

• y = (0:L-1)*m + b


where m is the slope specified by the scalar Slope parameter, b is the y-intercept specified by the scalar Offset parameter.

For a matrix input, the length L of the output ramp is equal to either the number of rows or the number of columns in the input, as determined by the Ramp length equals number of parameter. For a 1-D vector input, L is equal to the length of the input vector. The output, y, is always a 1-D vector.

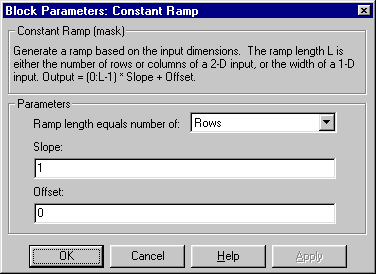

Dialog Box

Ramp length equals number of

The dimension of the input matrix that determines the length of the output ramp, Rows or Columns.

Slope

The slope of the ramp, a scalar.

Offset

The y-intercept of the ramp, a scalar.

Supported Data Types

• Double-precision floating point
• Single-precision floating point

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

Create Diagonal Matrix	DSP Blockset
Identity Matrix	DSP Blockset
DSP Constant	DSP Blockset

Also see the following topics:

• Creating Signals Using Constant Blocks -- How to use this and other blocks to generate constant signals
• DSP Sources -- List of all blocks in the DSP Sources library
