SimPowerSystems

Current Measurement

Measure a current in a circuit

Library

Measurements

Description

The Current Measurement block is used to measure the instantaneous current flowing in any electrical block or connection line. The Simulink output provides a Simulink signal that can be used by other Simulink blocks.

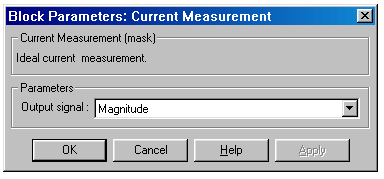

Dialog Box and Parameters

Output signal

Specifies the format of the output signal when the block is used in a phasor simulation. The Output signal parameter is disabled when the block is not used in a phasor simulation. The phasor simulation is activated by a Powergui block placed in the model.

Set to Complex to output the measured current as a complex value. The output is a complex signal.

Set to Real-Imag to output the real and imaginary parts of the measured current. The output is a vector of two elements.

Set to Magnitude-Angle to output the magnitude and angle of the measured current. The output is a vector of two elements.

Set to Magnitude to output the magnitude of the measured current. The output is a scalar value.

Example

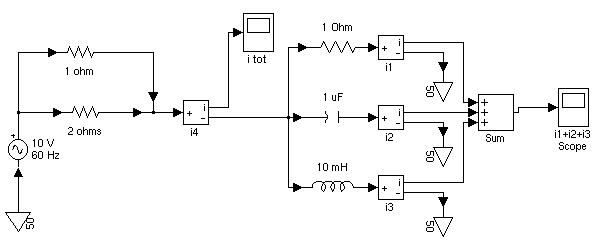

The psbcurrmeasure.mdl demo uses four Current Measurement blocks to read currents in different branches of a circuit. The two scopes display the same current.

See Also
Powergui, Three-Phase V-I Measurement, Voltage Measurement
