L-Shaped Membrane with Rounded Corner
An extension of this problem is to compute the eigenvalues for an L-shaped membrane where the inner corner at the "knee" is rounded. The roundness is created by adding a circle so that the circle's arc is a part of the L-shaped membrane's boundary. By varying the circle's radius, the degree of roundness can be controlled. The M-file lshapec
is an extension of an ordinary model file created using pdetool
. It contains the lines
pdepoly([-1, 1, 1, 0, 0, -1],... [-1, -1, 1, 1, 0, 0],'P1'); pdecirc(-a,a,a,'C1'); pderect([-a 0 a 0],'SQ1');
The extra circle and rectangle that are added using pdecirc
and pderect
to create the rounded corner are affected by the added input argument a through a couple of extra lines of MATLAB code. This is possible since the PDE Toolbox is a part of the open MATLAB environment.
With lshapec
you can create L-shaped rounded geometries with different degrees of roundness. If you use lshapec
without an input argument, a default radius of 0.5 is used. Otherwise, use lshapec(a)
, where a
is the radius of the circle.
Experimenting using different values for the radius a
shows you that the eigenvalues and the frequencies of the corresponding eigenmodes decrease as the radius increases, and the shape of the L-shaped membrane becomes more rounded. In the figure below, the first eigenmode of an L-shaped membrane with a rounded corner is plotted.

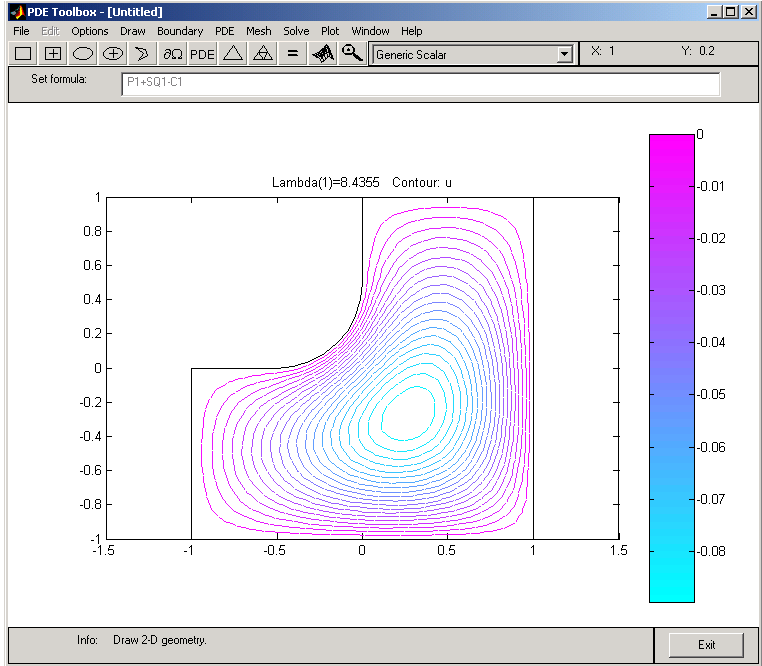

First Eigenmode for an L-Shaped Membrane with a Rounded Corner
