Compute the complex cepstrum of an input.
Library
Description
The Complex Cepstrum block computes the complex cepstrum of each channel in the real-valued M-by-N input matrix, u. For both sample-based and frame-based inputs, the block assumes that each input column is a frame containing M consecutive samples from an independent channel. The block does not accept complex-valued inputs.
The input is altered by the application of a linear phase term so that there is no phase discontinuity at ±
radians. That is, each input channel is independently zero padded and circularly shifted to have zero phase at radians.
The output is a real Mo-by-N matrix, where Mo is specified by the FFT length parameter. Each output column contains the length-Mo complex cepstrum of the corresponding input column.
When the Inherit FFT length from input port dimensions check box is selected, the output frame size matches the input frame size (Mo=M). In this case, a sample-based length-M row vector input is processed as a single channel (i.e., as an M-by-1 column vector), and the output is a length-M row vector. A 1-D vector input is always processed as a single channel, and the output is a 1-D vector.
The output is always sample-based, and the output port rate is the same as the input port rate.

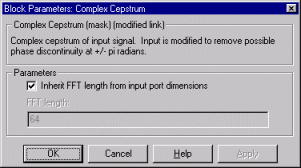

Dialog Box
Supported Data Types
To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.
See Also
| DCT |
DSP Blockset |
| FFT |
DSP Blockset |
| Real Cepstrum |
DSP Blockset |
cceps |
Signal Processing Toolbox |
Also see Transforms for a list of all the blocks in the Transforms library.
