Removing Channel Displays

You can remove a channel from a display one of these ways:

• Channel Editor GUI
• The Channel pane -- Clear the associated check box in the first column of the Defined channels table.
• The Channel Display pane -- Select <not displayed> from the Display column of the table.
• The On/Off button of the Channel Scaling panel. Refer to Scaling the Channel Data for more information about this panel.

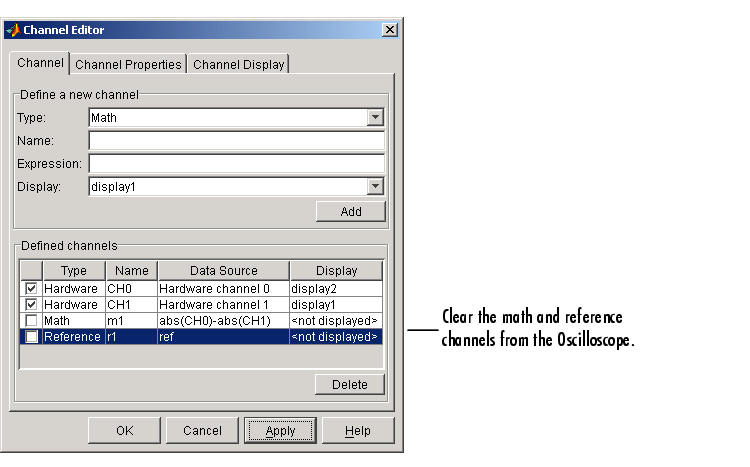

The Channel pane is shown below with the math and reference channels cleared from the Oscilloscope displays.

Note that if you clear the check boxes, then in addition to the channels not being displayed:

• For hardware channels, data is not streamed into the Oscilloscope.
• For math and reference channels, the values are not calculated.
