Previewing Data

Before you extract and analyze acquired data, you might want to examine (preview) the data as it is being acquired. Previewing the data allows you to determine if the hardware is performing as expected and if your acquisition process is configured correctly. Once you are convinced that your system is in order, you might still want to monitor the data even as it is being analyzed or saved to disk.

Previewing data is managed with the peekdata function. For example, to preview the most recent 1000 samples acquired for the analog input object ai:

• data = peekdata(ai,1000);


After start is issued, you can call peekdata. peekdata is a nonblocking function because it immediately returns control to MATLAB. Therefore, samples might be missed or repeated.

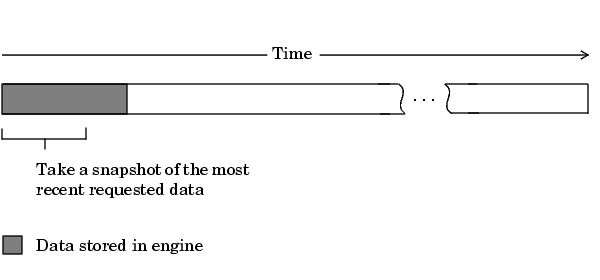

When a peekdata call is processed, the most recent samples requested are immediately returned, but the data is not extracted from the engine. In other words, peekdata provides a "snapshot" of the most recent requested samples. This situation is illustrated below.

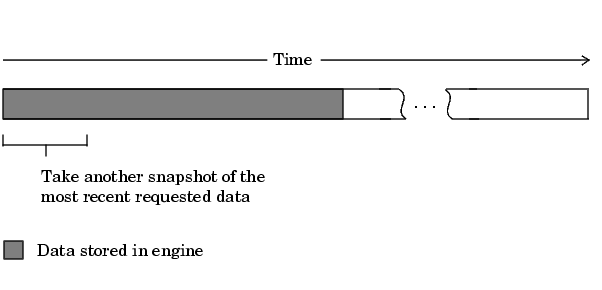

If another peekdata call is issued, then once again, only the most recent requested samples are returned. This situation is illustrated below.

Rules for Using peekdata

Using peekdata to preview data follows these rules:

• You can call peekdata before a trigger executes. Therefore, peekdata is useful for previewing data before it is logged to the engine or a disk file.
• In most cases, you will call peekdata while the device object is running. However, you can call peekdata once after the device object stops running.
• If the specified number of preview samples is greater than the number of samples currently acquired, all available samples are returned with a warning message stating that the requested number of samples were not available.

For more information about peekdata, refer to its reference pages in Function Reference.

Example: Polling the Data Block

Under certain circumstances, you might want to poll the data block. Polling the data block is useful when calling peekdata because this function does not block execution control. For example, you can issue peekdata calls based on the number of samples acquired by polling the SamplesAcquired property.

You can run this example by typing daqdoc5_1 at the MATLAB command line.

1. Create a device object -- Create the analog input object AI for a sound card. The available adaptors and hardware IDs are found with daqhwinfo.

• AI = analoginput('winsound');
  %AI = analoginput('nidaq',1);
  %AI = analoginput('mcc',1);


2. Add channels -- Add one hardware channel to AI.

• addchannel(AI,1);
  %addchannel(AI,0); % For NI and MCC


3. Configure property values -- Define a 10 second acquisition, set up a plot, and store the plot handle and title handle in the variables P and T, respectively.

• duration = 10; % Ten second acquisition
  ActualRate = get(AI,'SampleRate');
  set(AI,'SamplesPerTrigger',duration*ActualRate)
  figure
  set(gcf,'doublebuffer','on') %Reduce plot flicker
  P = plot(zeros(1000,1));
  T = title([sprintf('Peekdata calls: '), num2str(0)]);
  xlabel('Samples'), axis([0 1000 -1 1]), grid on


4. Acquire data -- Start AI and update the display for each 1000 samples acquired by polling SamplesAcquired. The drawnow command forces MATLAB to update the plot. Because peekdata is used, all acquired data might not be displayed.

• start(AI)
  i = 1;
  while AI.SamplesAcquired < AI.SamplesPerTrigger
      while AI.SamplesAcquired < 1000*i
      end
      data = peekdata(AI,1000);
      set(P,'ydata',data);
      set(T,'String',[sprintf('Peekdata calls: '),num2str(i)]);
      drawnow
      i = i + 1;
  end


1. Make sure AI has stopped running before cleaning up the workspace.

   • waittilstop(AI,2)


5. Clean up -- When you no longer need AI, you should remove it from memory and from the MATLAB workspace.

• delete(AI)
  clear AI


As you run this example, you might not preview all 80,000 samples stored in the engine. This is because the engine might store data faster than it can be displayed, and peekdata does not guarantee that all requested samples are processed.
