Synchronization

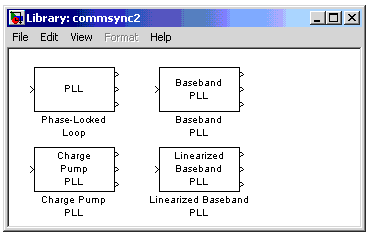

The Synchronization library provides four phase-locked loop models. You can open the Synchronization library by double-clicking on its icon in the main Communications Blockset library (commlib), or by typing commsync2 at the MATLAB prompt.

Note    In this document, you can jump to a block's reference page by clicking on its icon below.

The table below lists and describes the blocks in the Synchronization library. For information about a specific block, see the reference pages that follow.

Block Name	Purpose
Baseband PLL	Implement a baseband phase-locked loop
Charge Pump PLL	Implement a charge pump phase-locked loop using a digital phase detector
Linearized Baseband PLL	Implement a linearized version of a baseband phase-locked loop
Phase-Locked Loop	Implement a phase-locked loop to recover the phase of the input signal
