Shift the phase of the complex input signal by the second input value
Library
Sequence Operations, in Basic Comm Functions
Description
The Complex Phase Shift block accepts a complex signal at the port labeled In. The output is the result of shifting this signal's phase by an amount specified by the real signal at the input port labeled Ph. The Ph input is measured in radians, and must have the same size and frame status as the In input.
The input signals can have any size or frame status. This block processes each pair of corresponding elements independently.

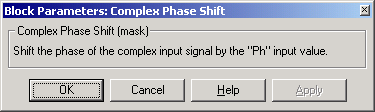

Dialog Box
See Also
