Complex Phase Difference

Output the phase difference between the two complex input signals

Library

Sequence Operations, in Basic Comm Functions

Description

The Complex Phase Difference block accepts two complex input signals that have the same size and frame status. The output is the phase difference from the second to the first, measured in radians. The elements of the output are between - and .

The input signals can have any size or frame status. This block processes each pair of elements independently.

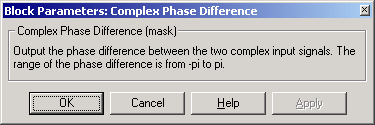

Dialog Box
