The TLC S-Function Wrapper

This section describes how to inline the call to my_alg in the MdlOutputs section of the generated code. In the above example, the call to my_alg is embedded in the mdlOutputs section as

*y = my_alg(*uPtrs[0]);

When creating a TLC S-function wrapper, the goal is to have the Real-Time Workshop embed the same type of call in the generated code.

It is instructive to look at how the Real-Time Workshop executes S-functions that are not inlined. A noninlined S-function is identified by the absence of the file sfunction.tlc and the existence of sfunction.mex. When generating code for a noninlined S-function, the Real-Time Workshop generates a call to mdlOutputs through a function pointer that, in this example, then calls my_alg.

The wrapper example contains one S-function (wrapsfcn.mex). You must compile and link an additional module, my_alg, with the generated code. To do this, specify

set_param('wrapper/S-Function','SFunctionModules','my_alg')

The code generated when using grt.tlc as the system target file without wrapsfcn.tlc is

<Generated code comments for wrapper model with noninlined wrapsfcn S-function>

#include <math.h>
#include <string.h>
#include "wrapper.h"
#include "wrapper.prm"

/* Start the model */
void MdlStart(void)
{
  /* (no start code required) */
}

/* Compute block outputs */
void MdlOutputs(int_T tid)
{
  /* Sin Block: <Root>/Sin */
  rtB.Sin = rtP.Sin.Amplitude *
    sin(rtP.Sin.Frequency * ssGetT(rtS) + rtP.Sin.Phase);

  /* Level2 S-Function Block: <Root>/S-Function (wrapsfcn) */
  {
    SimStruct *rts = ssGetSFunction(rtS, 0);
    sfcnOutputs(rts, tid);
  }

  /* Outport Block: <Root>/Out */
  rtY.Out = rtB.S_Function;
}

/* Perform model update */
void MdlUpdate(int_T tid)
{
  /* (no update code required) */
}

/* Terminate function */
void MdlTerminate(void)
{
  /* Level2 S-Function Block: <Root>/S-Function (wrapsfcn) */



{
    SimStruct *rts = ssGetSFunction(rtS, 0);
    sfcnTerminate(rts);
  }
}

#include "wrapper.reg"

/* [EOF] wrapper.c */

In addition to the overhead outlined above, the wrapper.reg generated file contains the initialization of the SimStruct for the wrapper S-function block. There is one child SimStruct for each S-function block in your model. This overhead can be significantly reduced by creating a TLC wrapper for the S-function.

How to Inline

The generated code makes the call to your S-function, wrapsfcn.c, in MdlOutputs by using this code.

SimStruct *rts = ssGetSFunction(rtS, 0);
sfcnOutputs(rts, tid);

This call has a significant amount of computational overhead associated with it. First, Simulink creates a SimStruct data structure for the S-function block. Second, the Real-Time Workshop constructs a call through a function pointer to execute MdlOutputs, and then MdlOutputs calls my_alg. By inlining the call to your C algorithm (my_alg), you can eliminate both the SimStruct and the extra function call, thereby improving the efficiency and reducing the size of the generated code.

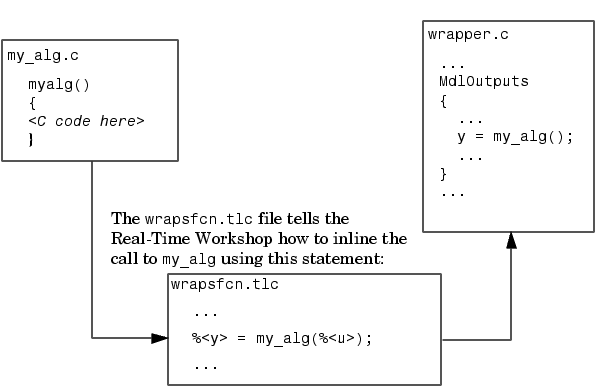

Inlining a wrapper S-function requires an sfunction.tlc file for the S-function; this file must contain the function call to my_alg. This picture shows the relationships between the algorithm, the wrapper S-function, and the sfunction.tlc file.

Figure 8-2: Inlining an Algorithm by Using a TLC File

To inline this call, you have to place your function call into an sfunction.tlc file with the same name as the S-function (in this example, wrapsfcn.tlc). This causes the Target Language Compiler to override the default method of placing calls to your S-function in the generated code.

This is the wrapsfcn.tlc file that inlines wrapsfcn.c.

%% File    : wrapsfcn.tlc
%% Abstract:
%%      Example inlined tlc file for S-function wrapsfcn.c
%%

%implements "wrapsfcn" "C"

%% Function: BlockTypeSetup ====================================================
%% Abstract:
%%      Create function prototype in model.h as:
%%        "extern real_T my_alg(real_T u);"
%%
%function BlockTypeSetup(block, system) void
  %openfile buffer
    extern real_T my_alg(real_T u);
  %closefile buffer
  %<LibCacheFunctionPrototype(buffer)>
%endfunction %% BlockTypeSetup

%% Function: Outputs ===========================================================
%% Abstract:
%%      y = my_alg( u );
%%
%function Outputs(block, system) Output
  /* %<Type> Block: %<Name> */
  %assign u = LibBlockInputSignal(0, "", "", 0)
  %assign y = LibBlockOutputSignal(0, "", "", 0)
  %% PROVIDE THE CALLING STATEMENT FOR "algorithm"
  %<y> = my_alg(%<u>);

%endfunction %% Outputs

The first section of this code directs the Real-Time Workshop to inline the wrapsfcn S-function block and generate the code in C:

%implements "wrapsfcn" "C"

The next task is to tell the Real-Time Workshop that the routine, my_alg, needs to be declared external in the generated wrapper.h file for any wrapsfcn S-function blocks in the model. You only need to do this once for all wrapsfcn S-function blocks, so use the BlockTypeSetup function. In this function, you tell the Target Language Compiler to create a buffer and cache the my_alg as extern in the wrapper.h generated header file.

The final step is the actual inlining of the call to the function my_alg. This is done by the Outputs function. In this function, you load the input and output and call place a direct call to my_alg. The call is embedded in wrapper.c.
