Right-Click Menu for SISO Systems

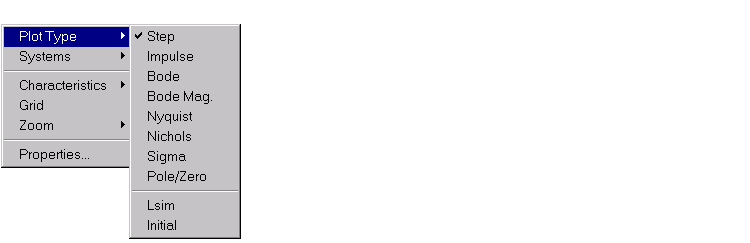

Note    Click on items in the right-click menu pictured below for help contents.

This right-click menu appears when you have a SISO system imported into your LTI Viewer. If you have a MIMO system, or an LTI array containing multiple models, there are additional menu options. See Right-Click Menus for MIMO Systems and LTI Arrays for more information.

You can use the right-click menus to perform the following tasks:

• Change the plot type in the viewer
• Select and deselect imported models for display
• Add or remove grid lines
• Zoom in on areas of plots
• Open the Property Editor

Plot Type

Select which plot type you want to display. The LTI Viewer shows a check to mark which plot is currently displayed. These are the available options:

• Step -- Step response
• Impulse -- Impulse response
• Bode -- Magnitude and phase plots
• Bode Mag. -- Magnitude only
• Nyquist -- Nyquist diagram
• Nichols -- Nichols chart
• Sigma -- Singular values plot
• Pole/Zero -- Pole/Zero map

You cannot switch to Lsim or Initial. To access these options, use 'lsim' and 'initial' flags when invoking the LTI Viewer. See ltiview for more information.
