Execution Paths in the Application M-File

The application M-file performs different actions depending on what arguments are passed to it when it is called. For example:

• Calling the M-file with no arguments launches the GUI (if you assign an output argument, the M-file returns the handle of the GUI figure).
• Calling the M-file with the name of a subfunction as the first argument executes that specific subfunction (typically, but not necessarily, a callback routine).

The application M-file contains a "switchyard" that enables it to switch to various execution paths depending on how it is called.

The Switchyard Code

The switchyard functionality in the application M-file is implemented using the feval function from within an if statement. feval evaluates (executes) the subfunction whose name is passed as a string argument when the application M-file is called. feval executes within a try/catch statement to catch errors caused by passing the name of nonexistent subfunctions. The following code generated by GUIDE implements the switchyard (you should not modify this code).

if nargin == 0 % If no arguments, open GUI
fig = openfig(mfilename,'reuse');
    .
    .
    .
elseif ischar(varargin{1}) % If string argument, call subfunction
    try
        [varargout{1:nargout}] = feval(varargin{:});
    catch
        disp(lasterr);
    end
end

Any output arguments returned by your subroutine are then returned though the main function. In addition, all input arguments specified in the Callback property string are included in the evaluated statement.

See Launching a Dialog to Confirm an Operation for an example that launches the GUI with zero or four arguments.

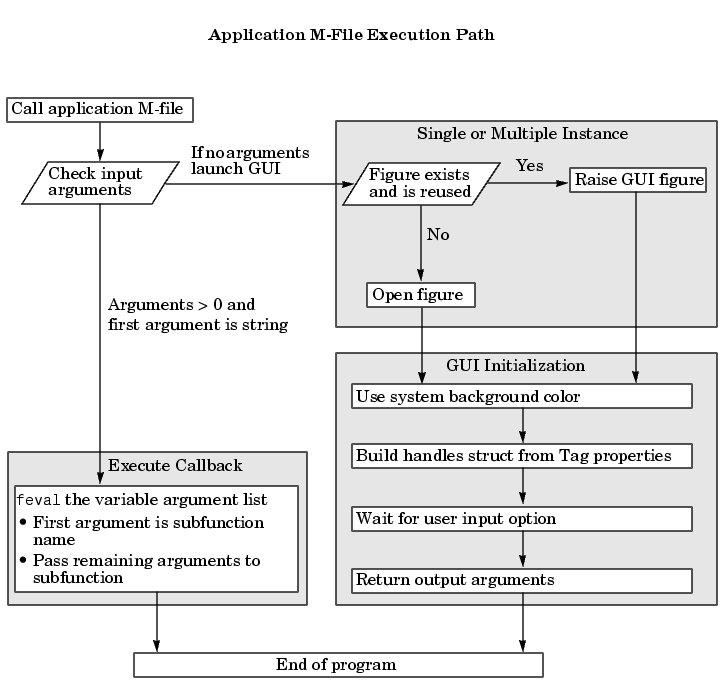

The following diagram illustrates the execution path for the application M-file.

Adding Input Arguments to Subfunctions

Callback subfunctions added by GUIDE require certain arguments, but have a variable-length argument list. Since the last argument is varargin, you can add whatever arguments you want to the subfunction. To pass the additional arguments, edit the Callback property's string to include the arguments. For example, if the string added automatically to the Callback property is,

my_gui('pushbutton1_Callback',gcbo,[],guidata(gcbo))

change it using the Property Inspector to include the additional arguments. For example,

my_gui('pushbutton1_Callback',gcbo,[],guidata(gcbo),arg1,arg2)

The subfunction, pushbutton1_Callback has the syntax

varargout = pushbutton1_Callback(h,eventdata,handles,varargin)

allowing a variable number of input arguments.
