Weighted Vector Sum

Find the weighted sum of two input vectors

Library

C62x DSP Library--Math and Matrices

Description

The Weighted Vector Sum block computes the weighted sum of two inputs, X and Y, according to (W*X)+Y. Inputs may be vectors or frame-based matrices. The number of samples per channel must be a multiple of four. Inputs, weights, and output are Q.15 data types, and weights must be in the range -1 < W < 1.

The Weighted Vector Sum block supports both continuous and discrete sample times. This block also supports both little-endian and big-endian code generation.

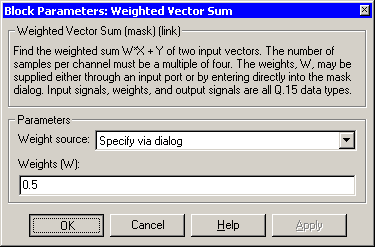

Dialog Box

Weight source

Specify the source of the weights:

• Specify via dialog--Enter the weights in the Weights (W) parameter in the dialog
• Input port--Accept the weights from port W

Weights (W)

This parameter is visible only when Specify via dialog is specified for the Weight source parameter. This parameter is tunable in simulation. When the weights are

• All the same, you need only enter a scalar.
• Different within channels but the same across channels, enter a vector containing the initial conditions for one channel. The length of this vector must be a multiple of four.
• Different across channels, enter a matrix containing all initial conditions. The number of rows of this matrix must be a multiple of four, and the number of columns of this matrix must be equal to the number of channels.
  Weights must be in the range -1 < W < 1.

Algorithm

In simulation, the Weighted Vector Sum block is equivalent to the TMS320C62x DSP Library assembly code function DSP_w_vec. During code generation, this block calls the DSP_w_vec routine to produce optimized code.
