Compute the sum of squares over each channel of a real input
Library
C62x DSP Library--Math and Matrices
Description
The Vector Sum of Squares block computes the sum of squares over each channel of a real input. The number of samples per input channel must be even and at least eight, and the input must be a 16-bit signed fixed-point data type. The output is a 32-bit signed fixed-point scalar on each channel. The number of fractional bits of the output is twice the number of fractional bits of the input.
The Vector Sum of Squares block supports both continuous and discrete sample times. This block also supports both little-endian and big-endian code generation.

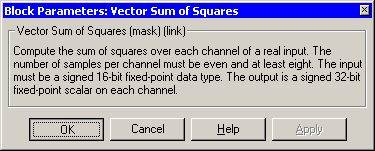

Dialog Box
Algorithm
In simulation, the Vector Sum of Squares block is equivalent to the TMS320C62x DSP Library assembly code function DSP_vecsumsq. During code generation, this block calls the DSP_vecsumsq routine to produce optimized code.
