ezplot3 (Symbolic Math Toolbox)

3-D parametric curve plotter

Syntax

ezplot3(x,y,z)
ezplot3(x,y,z,[tmin,tmax])
ezplot3(...,'animate')

Description

ezplot3(x,y,z) plots the spatial curve x = x(t), y = y(t), and z = z(t) over the default domain .

ezplot3(x,y,z,[tmin,tmax]) plots the curve x = x(t), y = y(t), and z = z(t) over the domain tmin < t < tmax.

ezplot3(...,'animate') produces an animated trace of the spatial curve.

Examples

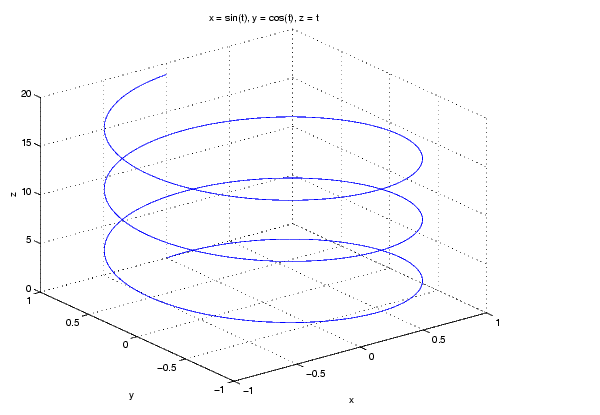

This example plots the parametric curve,

over the domain

syms t; ezplot3(sin(t), cos(t), t,[0,6*pi])

See Also

ezplot ezpolar
