pulstran

Generate a pulse train

Syntax

• y = pulstran(t,d,'func')
  y = pulstran(t,d,'func',p1,p2,...)
  y = pulstran(t,d,p,fs)
  y = pulstran(t,d,p)


Description

pulstran generates pulse trains from continuous functions or sampled prototype pulses.

y = pulstran(t,d,'func') generates a pulse train based on samples of a continuous function, 'func', where 'func' is

• 'gauspuls', for generating a Gaussian-modulated sinusoidal pulse
• 'rectpuls', for generating a sampled aperiodic rectangle
• 'tripuls', for generating a sampled aperiodic triangle

pulstran is evaluated length(d) times and returns the sum of the evaluations y = func(t-d(1)) + func(t-d(2)) + ...

The function is evaluated over the range of argument values specified in array t, after removing a scalar argument offset taken from the vector d. Note that func must be a vectorized function that can take an array t as an argument.

An optional gain factor may be applied to each delayed evaluation by specifying d as a two-column matrix, with the offset defined in column 1 and associated gain in column 2 of d. Note that a row vector will be interpreted as specifying delays only.

pulstran(t,d,'func',p1,p2,...) allows additional parameters to be passed to 'func' as necessary. For example:

• func(t-d(1),p1,p2,...) + func(t-d(2),p1,p2,...) + ...


pulstran(t,d,p,fs) generates a pulse train that is the sum of multiple delayed interpolations of the prototype pulse in vector p, sampled at the rate fs, where p spans the time interval [0,(length(p)-1)/fs], and its samples are identically 0 outside this interval. By default, linear interpolation is used for generating delays.

pulstran(t,d,p) assumes that the sampling rate fs is equal to 1 Hz.

pulstran(...,'func') specifies alternative interpolation methods. See interp1 for a list of available methods.

Examples

Example 1

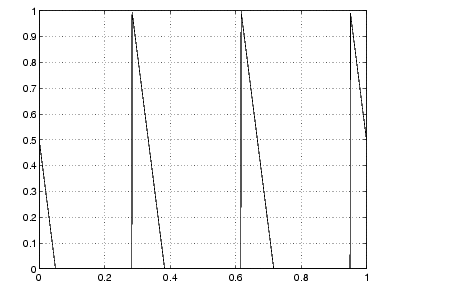

This example generates an asymmetric sawtooth waveform with a repetition frequency of 3 Hz and a sawtooth width of 0.1s. It has a signal length of 1s and a 1 kHz sample rate:

• t = 0 : 1/1e3 : 1;         % 1 kHz sample freq for 1 sec
  d = 0 : 1/3 : 1;            % 3 Hz repetition freq
  y = pulstran(t,d,'tripuls',0.1,-1);
  plot(t,y)




Example 2

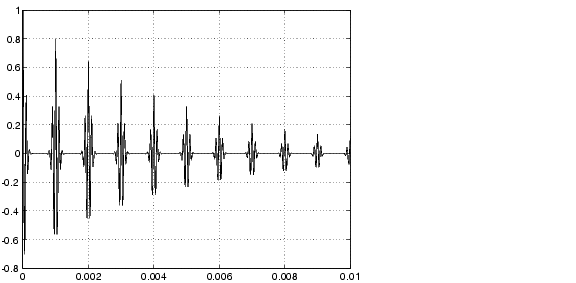

This example generates a periodic Gaussian pulse signal at 10 kHz, with 50% bandwidth. The pulse repetition frequency is 1 kHz, sample rate is 50 kHz, and pulse train length is 10 msec. The repetition amplitude should attenuate by 0.8 each time:

• t = 0 : 1/50E3 : 10e-3;
  d = [0 : 1/1E3 : 10e-3 ; 0.8.^(0:10)]';
  y = pulstran(t,d,'gauspuls',10e3,0.5);
  plot(t,y)




Example 3

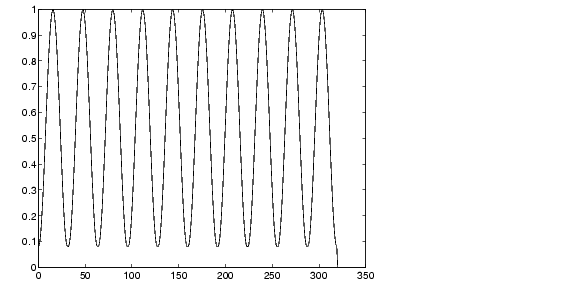

This example generates a train of 10 Hamming windows:

• p = hamming(32);
  t = 0:320; d = (0:9)'*32;
  y = pulstran(t,d,p);
  plot(t,y)




See Also

chirp, cos, diric, gauspuls, rectpuls, sawtooth, sin, sinc, square, tripuls
