Signal Object Configuration Quick
Reference Diagram

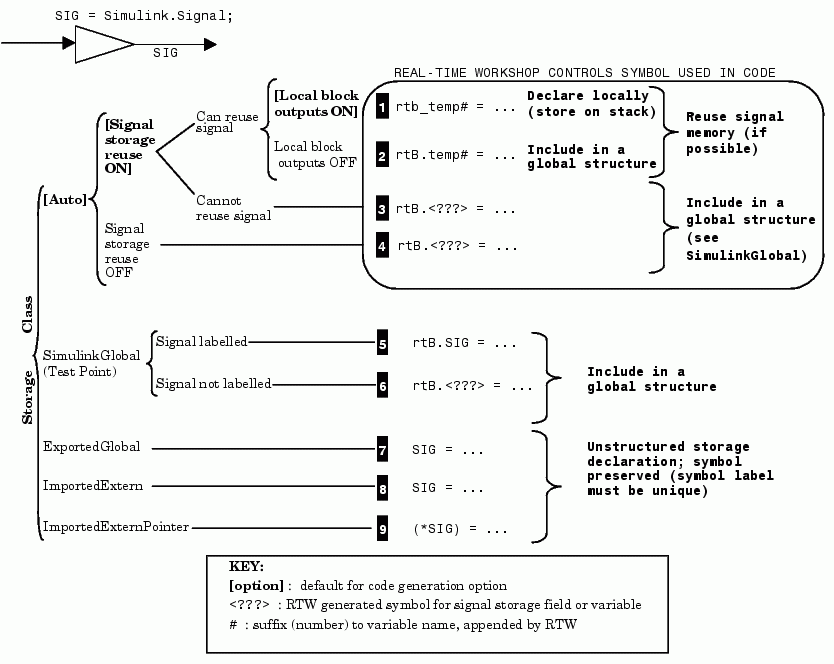

Figure 5-8 diagrams the code generation and storage class options that control the representation of signal objects in generated code.

Figure 5-8: Signal Object Configuration Quick Reference Diagram
