Summary of Files Created by the Build Procedure

The following is a list of the model.* files created during the code generation and build process for the GRT and GRT malloc targets. Many of the files derive from model.mdl, created by Simulink, which you can think of as a very high-level programming language source file. Files generated for embedded applications by Real-Time Workshop Embedded Coder are packaged slightly differently. Depending on model architectures and code generation options, other files may also be created by the build process:

• model.rtw, generated by Real-Time Workshop build process, is analogous to the object file created from a high-level language source program. This "compiled model" is deleted by default once the build is over, but may be retained for inspection.
• model.c, generated by the Target Language Compiler, is the C source code corresponding to the model.mdl file. It contains
• All data except data placed in model_data.c
• Include files model.h and model_private.h
• Algorithm code
• model_data.c, generated by the Target Language Compiler, is a conditionally-generated C source file that when present contains
• Constant block i/o parameters
• Include files model.h and model_private.h
• Constant parameters
• model_private.h, generated by the Target Language Compiler, is a header file that contains
• Imported Simulink data symbols
• Imported Stateflow machine parented data
• Stateflow entry points
• Real-Time Workshop-specific details (various macros, enums, etc. private to the code)
• model.h, generated by the Target Language Compiler, is a header file that includes model_private.h and also defines
• Exported Simulink data symbols
• Exported Stateflow machine parented data
• Model data structures, including rtM
• Model entry point functions
• subsystem.c, containing executable code for each noninlined nonvirtual subsystem or copy thereof (when its code cannot be reused).
• subsystem.h, containing exported symbols for noninlined nonvirtual subsystems, analogous to model.h.
• model.mk, generated by the Real-Time Workshop build process, is the customized makefile used to build an executable.
• model.exe (on PC) or model (on UNIX), is an executable program, created under control of the make utility by your development system (unless you have specified Generate code only on the Target configuration portion of the Real-Time Workshop pane).

In addition, for each build when the HTML report option is selected, a set of .html files (one for each source file plus a model_contents.html index file) is generated in the /html subdirectory within your build directory.

For more information, see Generated Source Files of the Real-Time Workshop documentation.

Overview of a model.rtw File

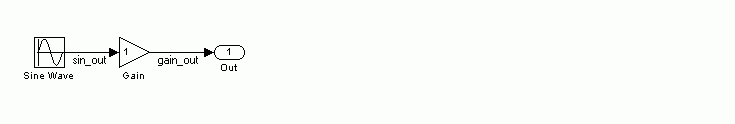

This section examines the basic features of a model.rtw file, which serves as input to the code generation process. The .rtw file shown is generated from the source model shown below.

This model is saved in a file called example.mdl. Real-Time Workshop generates example.rtw., an ASCII file by compiling the model into structured records from which code can be generated. The example.rtw file consists of parameter name/parameter value pairs, stored in a hierarchical structure of nested text records.

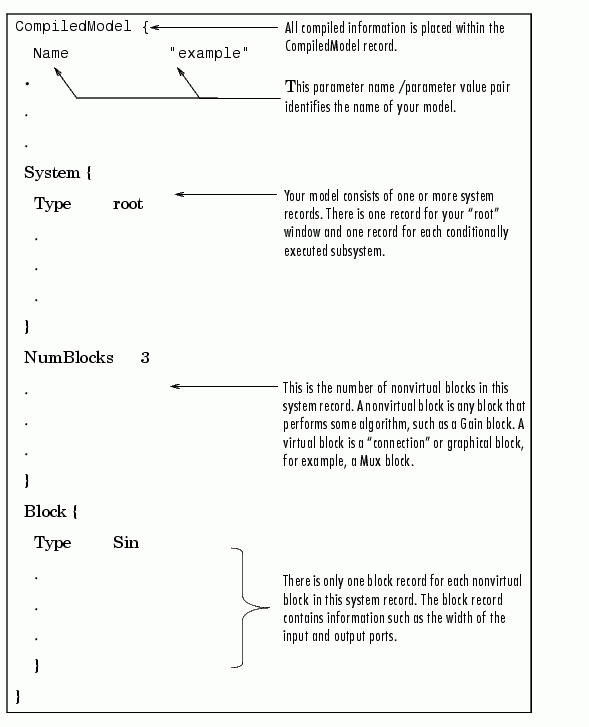

Below is an excerpt from example.rtw. The majority of lines have been elided to highlight on the structure of the file rather than its specific contents. You can find a more extensive example of a model.rtw file in the Code Generation Architecture" section of the Target Language Compiler documentation.

For more information on these files, see the Appendix A of the Target Language Compiler documentation, which details all records comprising model.rtw files. The documentation also provides tutorials on processing such record files.

Directories Used in the Build Process

Real-Time Workshop creates output files in two directories during the build process:

• The working directory

• If an executable is created, it is written to your working directory. The executable is named model.exe (on PC) or model (on UNIX).

• The build directory

• The build process creates a subdirectory, called the build directory, within your working directory. The build directory name is model_target_rtw, where model is the name of the source model and target is the type of the chosen target (e.g., grt for generic real-time). The build directory stores generated source code and all other files created during the build process (except the executable).

The build directory always contains the generated code modules model.c, model.h, and model_export.h, and the generated makefile model.mk.

Depending upon the target and code generation and build options selected, additional files in the build directory may include

• model.rtw
• Object (.obj or .o) files
• Code modules generated from subsystems
• HTML summary reports of files generated (in its /html subdirectory)
• TLC profiler report files
• Block I/O (model_bio.c) and parameter tuning (model_pt.c) information files
• Real-Time Workshop project (model.tmw) files
