Introduction

The Interrupt Templates library is part of the Real-Time Workshop library, which you access via the Simulink Library Browser, as shown in Figure 13-1. Do this by typing the MATLAB command

• simulink


then by clicking the plus sign to the left of the Real-Time Workshop entry, and clicking on Interrupt Templates.

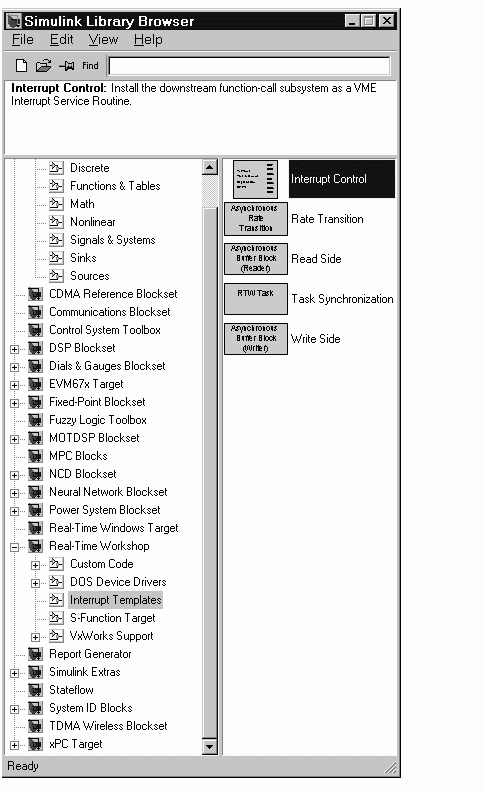

Figure 13-1: Interrupt Templates in Simulink Library Browser

Note that, depending on which MathWorks products you have installed, your browser may show a different collection of libraries.

Other sublibraries in the Real-Time Workshop library are:

• DOS Device Drivers: Blocks for use with DOS. See Appendix C, "Targeting DOS for Real-Time Applications for information.
• S-Function Target: The S-Function Target sublibrary contains only one block type, the RTW S-Function block. This block is intended for use with generated S-functions. See The S-Function Target for more information.
• VxWorks Support: A collection of blocks that support VxWorks (Tornado). See Targeting Tornado for Real-Time Applications for information on VxWorks.
