Draw Mode
|
Enter draw mode.
|
Rectangle/square
|
Draw a rectangle/square starting at a corner. Using the left mouse button, click-and-drag to create a rectangle. Using the right mouse button (or Control-click), click-and-drag to create a square.
|
Rectangle/square (centered)
|
Draw a rectangle/square starting at the center. Using the left mouse button, click-and-drag to create a rectangle. Using the right mouse button (or Control-click), click-and-drag to create a square.
|
Ellipse/circle
|
Draw an ellipse/circle starting at the perimeter. Using the left mouse button, click-and-drag to create an ellipse. Using the right mouse button (or Control-click), click-and-drag to create a circle.
|
Ellipse/circle (centered)
|
Draw an ellipse/circle starting at the center. Using the left mouse button, click-and-drag to create an ellipse. Using the right mouse button (or Control-click), click-and-drag to create a circle.
|
Polygon
|
Draw a polygon. You can close the polygon by pressing the right mouse button. Clicking at the starting vertex also closes the polygon.
|
Rotate . . .
|

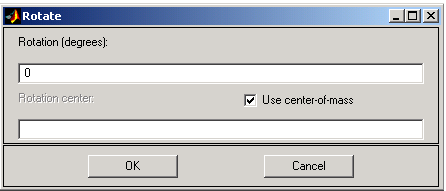

Rotate selected objects.
|
Export Geometry Description, Set Formula, Labels. . .
|
Export the Geometry Description matrix gd, the set formula string sf, and the Name Space matrix ns (labels) to the main workspace.
|
