DSP Blockset

Transpose

Compute the transpose of a matrix.

Library

Math Functions / Matrices and Linear Algebra / Matrix Operations

Description

The Transpose block transposes the M-by-N input matrix to size N-by-M. When the Hermitian check box is selected, the block performs the Hermitian (complex conjugate) transpose

• y = u'           % Equivalent MATLAB code


When the Hermitian check box is not selected, the block performs the nonconjugate transpose

• y = u.'          % Equivalent MATLAB code


A length-M 1-D vector input is treated as an M-by-1 matrix. The output is always sample-based.

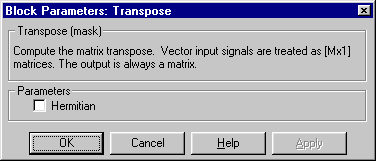

Dialog Box

Hermitian

When selected, specifies the complex conjugate transpose. Tunable, except in the Simulink external mode.

Supported Data Types

• Double-precision floating point
• Single-precision floating point
• Fixed-point
• Custom data types
• Boolean
• 8-, 16-, and 32-bit signed integers
• 8-, 16-, and 32-bit unsigned integers

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

Permute Matrix	DSP Blockset
Reshape	Simulink
Submatrix	DSP Blockset

Also see Matrix Operations for a list of all the blocks in the Matrix Operations library.
