To Wave File (DSP Blockset)

Write audio data to file in the Microsoft Wave (.wav) format (32-bit Windows operating systems only).

Library

Platform-specific I/O / Windows (WIN32)

Description

The To Wave File block writes audio data to a Microsoft Wave (.wav) file in the uncompressed PCM (pulse code modulation) format. For compatibility reasons, the sample rate of the discrete-time input signal should typically be one of the standard Windows audio device rates (8000, 11025, 22050, or 44100 Hz), although the block supports arbitrary rates.

The input to the block, u, can contain audio data from a mono or stereo signal. A mono signal is represented as either a sample-based scalar or frame-based length-M vector, while a stereo signal is represented as a sample-based length-2 vector or frame-based M-by-2 matrix. The amplitude of the input should be in the range ±1. Values outside this range are clipped to the nearest allowable value.

wavwrite(u,Fs,bits,'filename')         % Equivalent MATLAB code

The Sample Width (bits) parameter specifies the number of bits used to represent the signal samples in the file. Two settings are available:

8 -- allocates 8 bits to each sample, allowing a resolution of 256 levels
16 -- allocates 16 bits to each sample, allowing a resolution of 65536 levels
24 -- allocates 24 bits to each sample, allowing a resolution of 16777216 levels
32 -- allocates 32 bits to each sample, allowing a resolution of 232 levels ranging from -1 to 1.

The higher sample width settings require more memory but yield better fidelity for double- and single-precision inputs.

The File name parameter can specify an absolute or relative path to the file. You do not need to specify the.wav extension. To reduce the required number of file accesses, the block writes L consecutive samples to the file during each access, where L is specified by the Minimum number of samples for each write to file parameter (L M). For L <M, the block instead writes M consecutive samples during each access. Larger values of L result in fewer file accesses, which reduces run-time overhead.

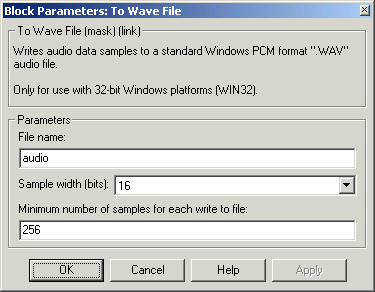

Dialog Box

File name: The path and name of the file to write. Paths can be relative or absolute.
Sample width (bits): The number of bits used to represent each signal sample.
Minimum number of samples for each write to file: The number of consecutive samples to write with each file access, L.

Supported Data Types

Double-precision floating point
Single-precision floating point
16-bit signed integer
8-bit unsigned integer

To learn how to convert data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

From Wave File
DSP Blockset

To Wave Device
DSP Blockset

To Workspace
Simulink

wavwrite
MATLAB

From Wave File	DSP Blockset
To Wave Device	DSP Blockset
To Workspace	Simulink
`wavwrite`	MATLAB

See Exporting and Playing WAV Files for related information. Also see Windows (WIN32) for a list of all the blocks in the Windows (WIN32) library.
