DSP Blockset

Reciprocal Condition

Compute the reciprocal condition of a square matrix in the 1-norm.

Library

Math Functions / Matrices and Linear Algebra / Matrix Operations

Description

The Reciprocal Condition block computes the reciprocal of the condition number for a square input matrix A.

• y = rcond(A)         % Equivalent MATLAB code


or

where is the condition number ( 1), and y is the scalar sample-based output (0 y < 1).

The matrix 1-norm, , is the maximum column-sum in the M-by-M matrix A.

For a 3-by-3 matrix:

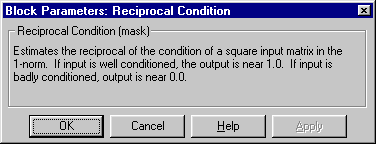

Dialog Box

References

Golub, G. H., and C. F. Van Loan. Matrix Computations. 3rd ed. Baltimore, MD: Johns Hopkins University Press, 1996.

Supported Data Types

• Double-precision floating point
• Single-precision floating point

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

Matrix 1-Norm	DSP Blockset
Normalization	DSP Blockset
rcond	MATLAB

Also see Matrix Operations for a list of all the blocks in the Matrix Operations library.
