DSP Blockset

Matrix 1-Norm

Compute the 1-norm of a matrix.

Library

Math Functions / Matrices and Linear Algebra / Matrix Operations

Description

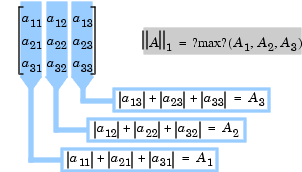

The Matrix 1-Norm block computes the 1-norm, or maximum column-sum, of an M-by-N input matrix, A.

This is equivalent to

• y = max(sum(abs(A)))     % Equivalent MATLAB code




A length-M 1-D vector input is treated as an M-by-1 matrix. The output, y, is always a scalar.

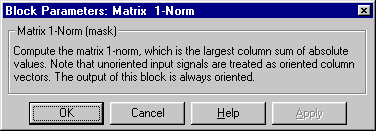

Dialog Box

References

Golub, G. H., and C. F. Van Loan. Matrix Computations. 3rd ed. Baltimore, MD: Johns Hopkins University Press, 1996.

Supported Data Types

• Double-precision floating point
• Single-precision floating point

To learn how to convert to the above data types in MATLAB and Simulink, see Supported Data Types and How to Convert to Them.

See Also

Normalization	DSP Blockset
Reciprocal Condition	DSP Blockset
norm	MATLAB

Also see Matrix Operations for a list of all the blocks in the Matrix Operations library.
