Associating Top-Level Blocks with the Subsystem

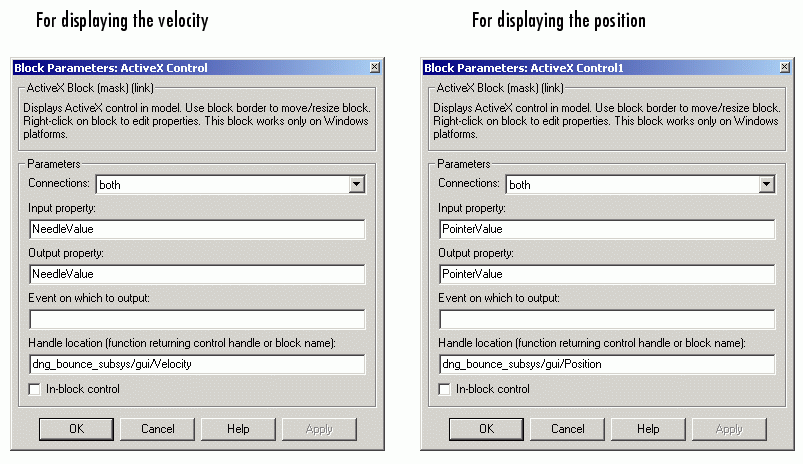

The procedure for associating the top-level ActiveX Control blocks with the gauge blocks that are inside the subsystem is similar to the procedure described in Associating the Main Model with the Gauges. The only difference is that the Handle location parameters have different values for a subsystem than for a separate model. The dialog boxes should look like those in the figure below.

Creating a Subsystem Containing Gauges

Placing ActiveX Controls in a Figure Window
