Placing ActiveX Controls in a Different Model

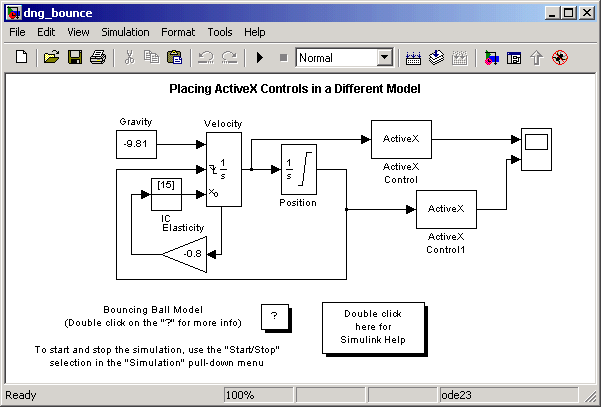

This sample model modifies the Simulink bounce demo by displaying the position and velocity signals on Dials & Gauges Blockset blocks contained in another model window. To open the original demo model, type bounce in MATLAB. To open the modified version, type dng_bounce in MATLAB. The modified version includes two ActiveX Control blocks on the signals that feed into the Scope block, as in the figure below.

The following sections describe the steps for using gauges contained in a different model:

• Creating a Model Window Containing Gauges
• Associating the Main Model with the Gauges

Placing ActiveX Controls in a Different Window

Creating a Model Window Containing Gauges
