series (Function Reference)

Series connection of two LTI models

Syntax

sys = series(sys1,sys2)
sys = series(sys1,sys2,outputs1,inputs2)

Description

series connects two LTI models in series. This function accepts any type of LTI model. The two systems must be either both continuous or both discrete with identical sample time. Static gains are neutral and can be specified as regular matrices.

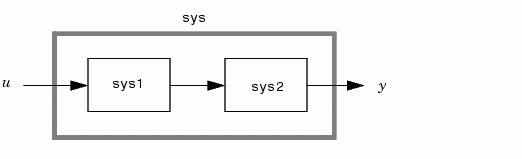

sys = series(sys1,sys2) forms the basic series connection shown below.

This command is equivalent to the direct multiplication

```
sys = sys2 * sys1
```

See Multiplication for details on multiplication of LTI models.

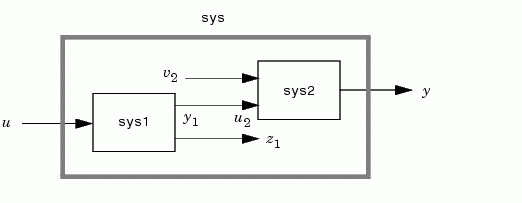

sys = series(sys1,sys2,outputs1,inputs2) forms the more general series connection.

The index vectors outputs1 and inputs2 indicate which outputs of sys1 and which inputs of sys2 should be connected. The resulting model sys has as input and as output.

Example

Consider a state-space system sys1 with five inputs and four outputs and another system sys2 with two inputs and three outputs. Connect the two systems in series by connecting outputs 2 and 4 of sys1 with inputs 1 and 2 of sys2.

outputs1 = [2 4];
inputs2 = [1 2];
sys = series(sys1,sys2,outputs1,inputs2)

See Also
append Append LTI systems

feedback Feedback connection

parallel Parallel connection

rss set
