Blocks -- By Category
This chapter contains detailed descriptions of all Communications Blockset blocks. It first shows the libraries and lists their contents, and then presents the block reference entries in alphabetical order. More detailed discussions of the core libraries' capabilities are in the Using the Libraries section.

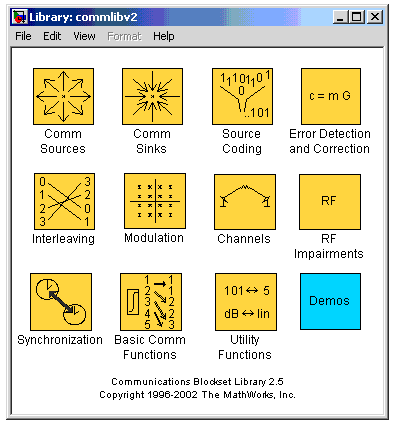

Below is the main library of the Communications Blockset. You can open it by typing commlib at the MATLAB prompt. Each yellow icon in this window represents a library. In Simulink, double-clicking on a library icon opens the library. In this document, clicking on one of the yellow icons below jumps to an overview of that library.
To access an older version of the library (for example, if you are modifying one of your legacy models), then you should use one of these alternative syntaxes of the commlib command.
The main library is divided into eleven sublibraries:
