Permute input symbols using a set of shift registers with specified delays
Library
Convolutional sublibrary of Interleaving
Description
The General Multiplexed Interleaver block permutes the symbols in the input signal. Internally, it uses a set of shift registers, each with its own delay value.
The input can be either a scalar or a frame-based column vector. It can be real or complex. The input and output signals share the same sample time.
The Interleaver delay parameter is a column vector whose entries indicate how many symbols can fit into each shift register. The length of the vector is the number of shift registers. (In sample-based mode, it can also be a row vector.)
The Initial conditions parameter indicates the values that fill each shift register at the beginning of the simulation. If Initial conditions is a scalar, then its value fills all shift registers; if Initial conditions is a column vector, then each entry fills the corresponding shift register. (In sample-based mode, Initial conditions can also be a row vector.) If a given shift register has zero delay, then the value of the corresponding entry in the Initial conditions vector is unimportant.

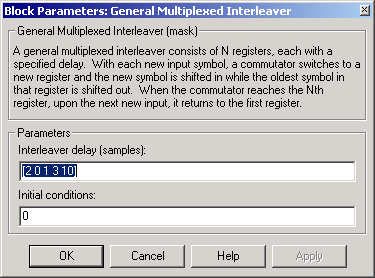

Dialog Box
Pair Block
General Multiplexed Deinterleaver
See Also
Convolutional Interleaver, Helical Interleaver
References
[1] Heegard, Chris and Stephen B. Wicker. Turbo Coding. Boston: Kluwer Academic Publishers, 1999.
