FM Demodulator Baseband
Demodulate FM-modulated data
Library
Analog Baseband Modulation, in Modulation
Description
The FM Demodulator Baseband block demodulates a signal that was modulated using frequency modulation. The input is a baseband representation of the modulated signal. The input is complex, while the output is real. The input must be a sample-based scalar signal.
In the course of demodulating, this block uses a filter whose transfer function is described by the Lowpass filter numerator and Lowpass filter denominator parameters.

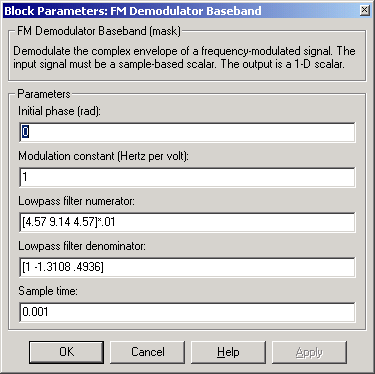

Dialog Box
- Initial phase (rad)
- The initial phase in the corresponding FM Modulator Baseband block.
- Modulation constant (Hertz per volt)
- The modulation constant in the corresponding FM Modulator Baseband block.
- Lowpass filter numerator
- The numerator of the lowpass filter transfer function. It is represented as a vector that lists the coefficients in order of descending powers of s.
- Lowpass filter denominator
- The denominator of the lowpass filter transfer function. It is represented as a vector that lists the coefficients in order of descending powers of s. For an FIR filter, set this parameter to
1.
- Sample time
- The sample time of the output signal.
Pair Block
FM Modulator Baseband
