CDMA Reference Blockset

Library Summaries

This section surveys the contents of the blockset, considering each of the libraries in turn.

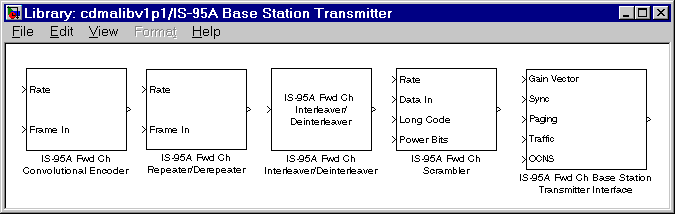

IS-95A Base Station Transmitter Library

The Base Station Transmitter Library provides the blocks required to perform the CDMA system base station or forward link transmitter functions.

Function	Block(s)
Channel coding for the transmit data at the base station	IS-95A Fwd Ch Convolutional Encoder IS-95A Fwd Ch Repeater/Derepeater IS-95A Fwd Ch Interleaver/Deinterleaver
Pseudorandom scrambling of the transmitted data based on the user-specific long code	IS-95A Fwd Ch Scrambler
Spreading of the data sources corresponding to the different channels	IS-95A Fwd Ch Base Station Transmitter Interface

Main Library Structure

IS-95A Mobile Station Receiver Library
