Convert from density units to desired density units
Library
Description
The Density Conversion block computes the conversion factor from specified input density units to specified output density units and applies the conversion factor to the input signal.
The Density Conversion block icon displays the input and output units selected from the Initial units and the Final units pop-up menus.

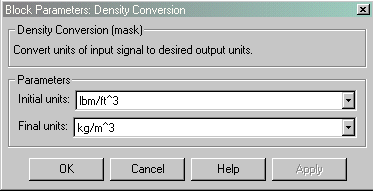

Dialog Box
The following conversion units are available:
lbm/ft^3 |
Pound mass per cubic foot |
kg/m^3 |
Kilograms per cubic meter |
slug/ft^3 |
Slugs per cubic foot |
lbm/in^3 |
Pound mass per cubic inch |
Inputs and Outputs
The input is density in initial density units.
The output is density in final density units.
See Also
Acceleration Conversion
Angular Acceleration Conversion
