subvolume

Extract subset of volume data set

Syntax

• [Nx,Ny,Nz,Nv] = subvolume(X,Y,Z,V,limits)
  [Nx,Ny,Nz,Nv] = subvolume(V,limits)
  Nv = subvolume(...)


Description

[Nx,Ny,Nz,Nv] = subvolume(X,Y,Z,V,limits) extracts a subset of the volume data set V using the specified axis-aligned limits. limits = [xmin,xmax,ymin, ymax,zmin,zmax] (Any NaNs in the limits indicate that the volume should not be cropped along that axis).

The arrays X, Y, and Z define the coordinates for the volume V. The subvolume is returned in NV and the coordinates of the subvolume are given in NX, NY, and NZ.

[Nx,Ny,Nz,Nv] = subvolume(V,limits) assumes the arrays X, Y, and Z are defined as [X,Y,Z] = meshgrid(1:N,1:M,1:P) where [M,N,P] = size(V).

Nv = subvolume(...) returns only the subvolume.

Examples

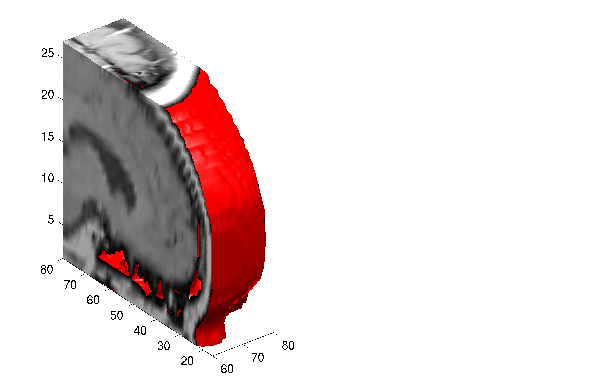

This example uses a data set that is a collection of MRI slices of a human skull. The data is processed in a variety of ways:

• The 4-D array is squeezed (squeeze) into three dimensions and then a subset of the data is extracted (subvolume).
• The outline of the skull is an isosurface generated as a patch (p1) whose vertex normals are recalculated to improve the appearance when lighting is applied (patch, isosurface, isonormals).
• A second patch (p2) with interpolated face color draws the end caps (FaceColor, isocaps).
• The view of the object is set (view, axis, daspect).
• A 100-element grayscale colormap provides coloring for the end caps (colormap).
• Adding lights to the right and left of the camera illuminates the object (camlight, lighting).

• load mri
  D = squeeze(D);
  [x,y,z,D] = subvolume(D,[60,80,nan,80,nan,nan]);
  p1 = patch(isosurface(x,y,z,D, 5),...
       'FaceColor','red','EdgeColor','none');
  isonormals(x,y,z,D,p1);
  p2 = patch(isocaps(x,y,z,D, 5),...
       'FaceColor','interp','EdgeColor','none');
  view(3); axis tight; daspect([1,1,.4])
  colormap(gray(100))
  camlight right; camlight left; lighting gouraud


See Also

isocaps, isonormals, isosurface, reducepatch, reducevolume, smooth3
