reducevolume

Reduce the number of elements in a volume data set

Syntax

• [nx,ny,nz,nv] = reducevolume(X,Y,Z,V,[Rx,Ry,Rz])
  [nx,ny,nz,nv] = reducevolume(V,[Rx,Ry,Rz])
  nv = reducevolume(...)


Description

[nx,ny,nz,nv] = reducevolume(X,Y,Z,V,[Rx,Ry,Rz]) reduces the number of elements in the volume by retaining every Rx^th element in the x direction, every Ry^th element in the y direction, and every Rz^th element in the z direction. If a scalar R is used to indicate the amount or reduction instead of a 3-element vector, MATLAB assumes the reduction to be [R R R].

The arrays X, Y, and Z define the coordinates for the volume V. The reduced volume is returned in nv and the coordinates of the reduced volume are returned in nx, ny, and nz.

[nx,ny,nz,nv] = reducevolume(V,[Rx,Ry,Rz]) assumes the arrays X, Y, and Z are defined as [X,Y,Z] = meshgrid(1:n,1:m,1:p) where [m,n,p] = size(V).

nv = reducevolume(...) returns only the reduced volume.

Examples

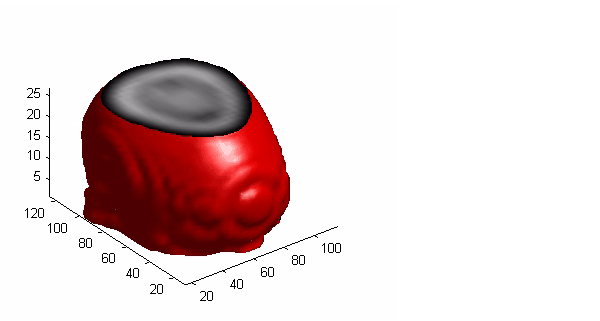

This example uses a data set that is a collection of MRI slices of a human skull. This data is processed in a variety of ways:

• The 4-D array is squeezed (squeeze) into three dimensions and then reduced (reducevolume) so that what remains is every 4^th element in the x and y directions and every element in the z direction.
• The reduced data is smoothed (smooth3).
• The outline of the skull is an isosurface generated as a patch (p1) whose vertex normals are recalculated to improve the appearance when lighting is applied (patch, isosurface, isonormals).
• A second patch (p2) with an interpolated face color draws the end caps (FaceColor, isocaps).
• The view of the object is set (view, axis, daspect).
• A 100-element grayscale colormap provides coloring for the end caps (colormap).
• Adding a light to the right of the camera illuminates the object (camlight, lighting).

• load mri
  D = squeeze(D);
  [x,y,z,D] = reducevolume(D,[4,4,1]);
  D = smooth3(D);
  p1 = patch(isosurface(x,y,z,D, 5,'verbose'),...
      'FaceColor','red','EdgeColor','none');
  isonormals(x,y,z,D,p1);
  p2 = patch(isocaps(x,y,z,D, 5),...
      'FaceColor','interp','EdgeColor','none');
  view(3); axis tight; daspect([1,1,.4])
  colormap(gray(100))
  camlight; lighting gouraud




See Also

isosurface, isocaps, isonormals, smooth3, subvolume, reducepatch
