When working in the Layout Editor, you can select an object with the left mouse button and then click the right button to display a context menu. In addition to containing items found on the Layout Editor window menu, this context menu enables you to add a subfunction to your application M-file for any of the additional object properties that define callback routines.
Figure Context Menus

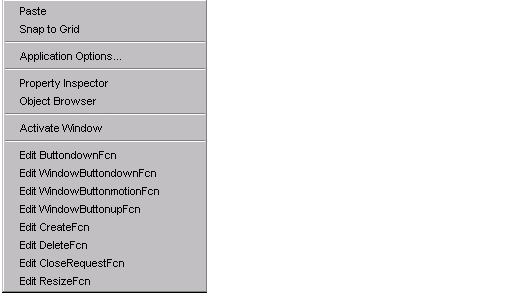

The following picture shows the context menu associated with figure objects. Note that all the properties that define callback routines for figures are listed in the lower panel.
GUI Component Context Menus

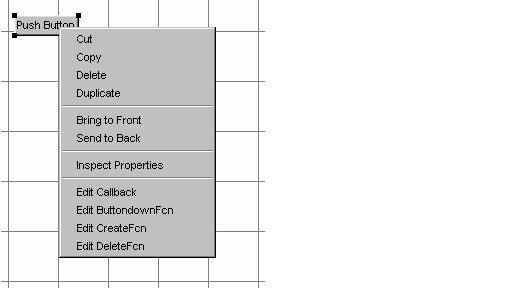

The following picture shows the context menu associated with uicontrol and axes objects. Note that all the properties that define callback routines for these objects are listed in the lower panel.
