A GUI to Set Simulink Model Parameters

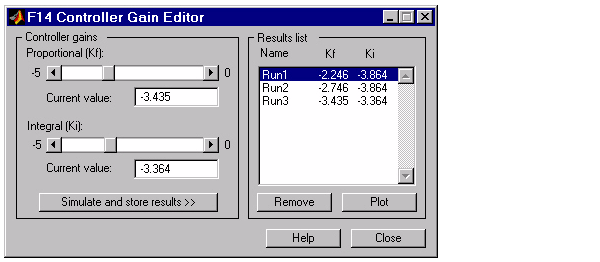

This example illustrates how to create a GUI that sets the parameters of a Simulink model. In addition, the GUI can run the simulation and plot the results. The following picture shows the GUI after running three simulations with different values for controller gains.

Techniques Used in This Example

This example illustrate a number of GUI building techniques:

• Opening and setting parameters on a Simulink model from a GUI.
• Implementing sliders that operate in conjunction with text boxes, which display the current value as well as accepting user input.
• Enabling and disabling controls, depending on the state of the GUI.
• Managing a variety of global data using the handles structure.
• Directing graphics output to a figures with hidden handles.
• Adding a help button that displays .html files in the MATLAB Help Browser.

View the Layout and Application M-File

Use these links to display the FIG-file in the Layout Editor and the application M-file in the MATLAB Editor. This enables you to see the values of all component properties and to explore how the components are assembled to create the GUI. You can also see the complete code listing.

Note    The following link adds a directory to the end of your MATLAB path.

Click here to display the layout in GUIDE.

Click here to display the application M-file in the editor.
