Find initial conditions for a transposed direct form II filter implementation
Syntax
Description
z finds the initial conditions, = filtic(b,a,y,x)
z, for the delays in the transposed direct form II filter implementation given past outputs y and inputs x. The vectors b and a represent the numerator and denominator coefficients, respectively, of the filter's transfer function.
The vectors x and y contain the most recent input or output first, and oldest input or output last.
where n is length(b)-1 (the numerator order) and m is length(a)-1 (the denominator order). If length(x) is less than n, filtic pads it with zeros to length n; if length(y) is less than m, filtic pads it with zeros to length m. Elements of x beyond x(n-1) and elements of y beyond y(m-1) are unnecessary so filtic ignores them.
Output z is a column vector of length equal to the larger of n and m. z describes the state of the delays given past inputs x and past outputs y.
z assumes that the input = filtic(b,a,y)
x is 0 in the past.

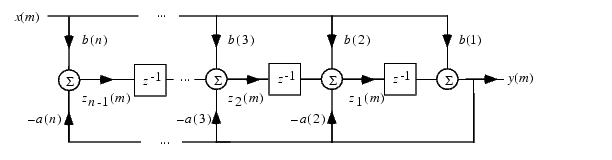

The transposed direct form II structure is
where n-1 is the filter order.
filtic works for both real and complex inputs.
Algorithm
filtic performs a reverse difference equation to obtain the delay states z.
Diagnostics
If any of the input arguments y, x, b, or a is not a vector (that is, if any argument is a scalar or array), filtic gives the following error message:
See Also
References
[1] Oppenheim, A.V., and R.W. Schafer, Discrete-Time Signal Processing, Prentice-Hall, 1989, pp. 296, 301-302.
