dfilt.latticemamax

Construct a discrete-time, lattice, moving average filter object

Syntax

• Hd = dfilt.latticemamax(k)
  Hd = dfilt.latticemamax


Description

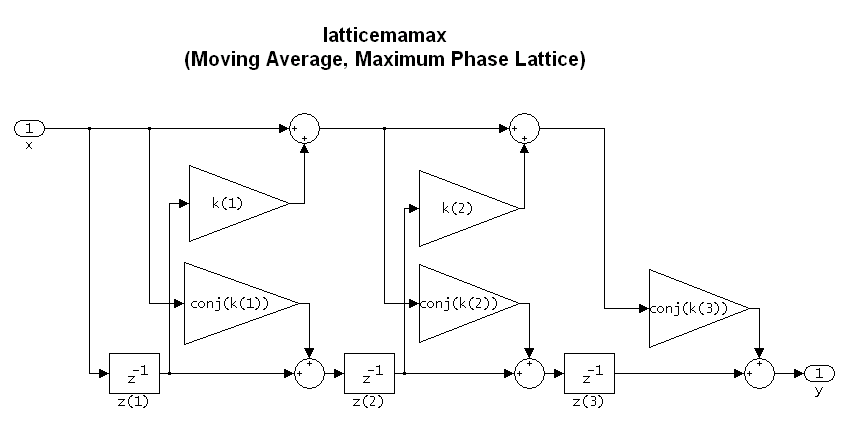

Hd = dfilt.latticemamax(k) returns a discrete-time, lattice, moving average filter object, Hd, with lattice coefficients k.

Note    If the k coefficients define a maximum phase filter, the resulting filter in this structure is maximum phase. If your coefficients do not define a maximum phase filter, placing them in this structure does not produce a maximum phase filter.

Hd = dfilt.latticemamax returns a default discrete-time, lattice, moving average filter object, Hd, with k=[ ]. This filter passes the input through to the output unchanged.

Examples

Specify a fourth-order lattice, moving average, maximum phase filter structure for a dfilt object, Hd, with the following code:

• k = [.66 .7 .44 .33];
  Hd = dfilt.latticemamax(k);
  Hd =
       FilterStructure: 'Lattice maximum phase'
               Lattice: [0.6600 0.7000 0.4400 0.3300]


See Also

dfilt, dfilt.latticeallpass, dfilt.latticear, dfilt.latticearma, dfilt.latticemamin
