Generate Code Without a Wrapper

Before creating a wrapper, generate code that uses the Simulink generic API.

Build a stand-alone model (the file will be called externalcode.exe in Windows and externalcode in UNIX environments). Click Tools -> Real-Time Workshop -> Build Model, or type Ctrl+B. Simulink will report the results, as follows:

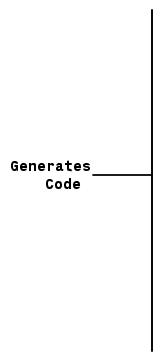

	### Starting Real-Time Workshop build procedure for model: externalcode ### Generating code into build directory: .\externalcode_grt_rtw ### Invoking Target Language Compiler on externalcode.rtw tlc -r .\externalcode_grt_rtw\externalcode.rtw 'D:\MATLAB6p1\rtw\c\grt\grt.tlc' -O.\externalcode_grt_rtw '-ID:\MATLAB6p1\rtw\c\grt' '-ID:\MATLAB6p1\rtw\c\tlc' -aEnforceIntegerDowncast=1 -aExtMode=0 -aFoldNonRolledExpr=1 -aForceParamTrailComments=0 -aGenerateComments=1 -aIgnoreCustomStorageClasses=1 -aIncHierarchyInIds=0 -aInlineInvariantSignals=1 -aInlineParameters=0 -aLocalBlockOutputs=1 -aLogVarNameModifier="rt_" -aRTWVerbose=1 -aRollThreshold=5 -aShowEliminatedStatements=1 -aReleaseVersion=12.1 -p10000 ### Loading TMW TLC function libraries .. ### Initial pass through model to cache user defined code ### Caching model source code . ### Creating (RealTime) source file externalcode.c . ### Creating model header file externalcode.h ### Creating model header file externalcode_export.h ### Creating parameter file externalcode_prm.h ### Creating registration file externalcode_reg.h ### TLC code generation complete.

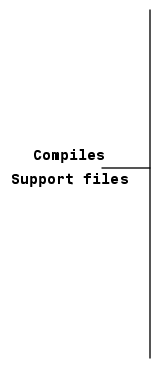

	### Creating project marker file: rtw_proj.tmw ### Creating externalcode.mk from D:\MATLAB6p1\rtw\c\grt\grt_lcc.tmf ### Building externalcode: .\externalcode.bat D:\Work\wrapper\externalcode_grt_rtw>set MATLAB=D:\MATLAB6p1 D:\Work\wrapper\externalcode_grt_rtw>"D:\MATLAB6p1\rtw\bin\win32\gmake" -f externalcode.mk D:\MATLAB6p1\sys\lcc\bin\lcc -c -Foexternalcode.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup externalcode.c Warning: externalcode.c: 41 Statement has no effect 0 errors, 1 warnings
	D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fogrt_main.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/grt/grt_main.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fort_sim.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rt_sim.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fortwlog.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rtwlog.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fort_nonfinite.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rt_nonfinite.c
	D:\MATLAB6p1\sys\lcc\bin\lcclnk -s -LD:\MATLAB6p1\sys\lcc\lib -o ../externalcode.exe externalcode.obj grt_main.obj rt_sim.obj rtwlog.obj rt_nonfinite.obj D:\MATLAB6p1\rtw\c\lib\win32\rtwlib_lcc.lib ### Created executable: externalcode.exe ### Successful completion of Real-Time Workshop build procedure for model: externalcode

### Starting Real-Time Workshop build procedure for model: externalcode ### Generating code into build directory: .\externalcode_grt_rtw ### Invoking Target Language Compiler on externalcode.rtw tlc -r .\externalcode_grt_rtw\externalcode.rtw 'D:\MATLAB6p1\rtw\c\grt\grt.tlc' -O.\externalcode_grt_rtw '-ID:\MATLAB6p1\rtw\c\grt' '-ID:\MATLAB6p1\rtw\c\tlc' -aEnforceIntegerDowncast=1 -aExtMode=0 -aFoldNonRolledExpr=1 -aForceParamTrailComments=0 -aGenerateComments=1 -aIgnoreCustomStorageClasses=1 -aIncHierarchyInIds=0 -aInlineInvariantSignals=1 -aInlineParameters=0 -aLocalBlockOutputs=1 -aLogVarNameModifier="rt_" -aRTWVerbose=1 -aRollThreshold=5 -aShowEliminatedStatements=1 -aReleaseVersion=12.1 -p10000 ### Loading TMW TLC function libraries .. ### Initial pass through model to cache user defined code ### Caching model source code . ### Creating (RealTime) source file externalcode.c . ### Creating model header file externalcode.h ### Creating model header file externalcode_export.h ### Creating parameter file externalcode_prm.h ### Creating registration file externalcode_reg.h ### TLC code generation complete.

### Creating project marker file: rtw_proj.tmw ### Creating externalcode.mk from D:\MATLAB6p1\rtw\c\grt\grt_lcc.tmf ### Building externalcode: .\externalcode.bat D:\Work\wrapper\externalcode_grt_rtw>set MATLAB=D:\MATLAB6p1 D:\Work\wrapper\externalcode_grt_rtw>"D:\MATLAB6p1\rtw\bin\win32\gmake" -f externalcode.mk D:\MATLAB6p1\sys\lcc\bin\lcc -c -Foexternalcode.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup externalcode.c Warning: externalcode.c: 41 Statement has no effect 0 errors, 1 warnings

D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fogrt_main.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/grt/grt_main.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fort_sim.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rt_sim.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fortwlog.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rtwlog.c D:\MATLAB6p1\sys\lcc\bin\lcc -c -Fort_nonfinite.obj -DMODEL=externalcode -DRT -DNUMST=2 -DTID01EQ=1 -DNCSTATES=0 -DMT=0 -DHAVESTDIO -I. -I.. -ID:\MATLAB6p1\simulink\include -ID:\MATLAB6p1\extern\include -ID:\MATLAB6p1\rtw\c\src -ID:\MATLAB6p1\rtw\c\libsrc -ID:\MATLAB6p1\sys\lcc\include -noregistrylookup D:\MATLAB6p1/rtw/c/src/rt_nonfinite.c

D:\MATLAB6p1\sys\lcc\bin\lcclnk -s -LD:\MATLAB6p1\sys\lcc\lib -o ../externalcode.exe externalcode.obj grt_main.obj rt_sim.obj rtwlog.obj rt_nonfinite.obj D:\MATLAB6p1\rtw\c\lib\win32\rtwlib_lcc.lib ### Created executable: externalcode.exe ### Successful completion of Real-Time Workshop build procedure for model: externalcode

Real-Time Workshop creates the stand-alone program, externalcode.exe, in your working directory and places the source and object files in your build directory.

Run the stand-alone to see that it behaves the same as the Simulink version. There should be no differences:

!externalcode

** starting the model **
** created externalcode.mat **

Inspect the mdloutputs() function of the code in wrapsfcn.c to see how the external function is called:

static void mdlOutputs(SimStruct *S, int tid)
{
    int_T             i;    /* not needed */
    InputRealPtrsType uPtrs = ssGetInputPortRealSignalPtrs(S,0);
    real_T            *y    = ssGetOutputPortRealSignal(S,0);
    int_T             width = ssGetOutputPortWidth(S,0);

    *y = my_alg(*uPtrs[0]);
}

Notice this line in wrapsfcn.c:

```
#include "my_alg.c"
```

This pulls in the external function. That function consists entirely of

/*
 * Copyright 1994-2001 The MathWorks, Inc.
 * $ Revision: 1.3 $
 */

double my_alg(double u)
{
    return(u * 2.0);
}

Generally, functions to be wrapped are either included in the wrapper, as above, or (when object modules are being wrapped) are resolved at link time.
