Why Wrap?

Many Simulink users want to build models incorporating algorithms that they have already coded in a high level language, implemented, and tested. Typically, such code is brought into Simulink as S-functions. To generate an external application with Real-Time Workshop that integrates user code, you can take several approaches:

• You can construct an S-function from user code that hooks it to the Simulink generic API. This is the simplest approach, but sacrifices efficiency when a stand-alone application is built.
• You can inline the S-function, reimplementing it as a TLC file. This improves efficiency, but takes time and effort, can introduce errors into working code, and leads to two sets of code to maintain for each algorithm.
• You can inline the S-function via a TLC wrapper function. By doing so, you only need to create a small amount of TLC code, and the algorithm can remain coded in its existing form.

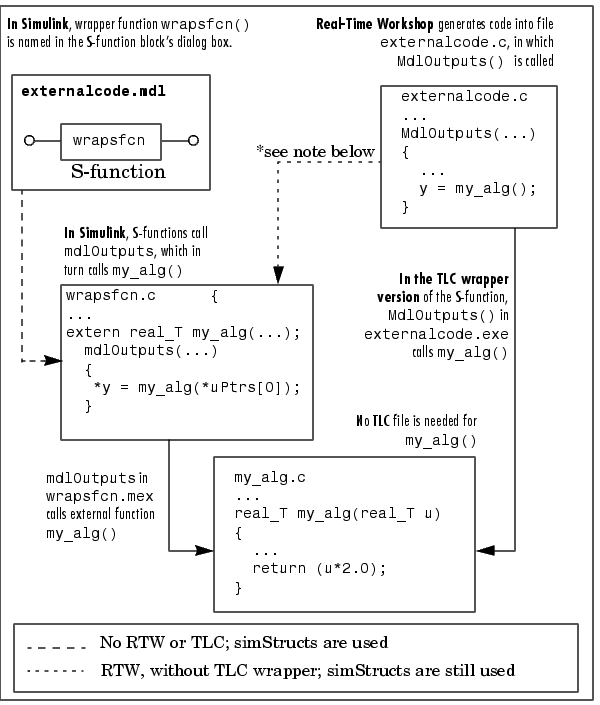

The figure below illustrates how S-function wrappers operate.

.

Wrapping a function eliminates the need to recode it, requiring only a bit of extra TLC code to glue it in place. Wrappers also enable object modules or libraries to be used in S-functions. This may be the only way to deploy functions for which source code is unavailable, and also allows users to distribute models to others without divulging implementation details that may be proprietary.

For example, you might have an existing object file compiled for a TI DSP or for some other processor on which Simulink does not run. You can write a dummy C S-function and use a TLC wrapper that calls the external function, despite not having its source code. You could similarly access functions in a library of algorithms optimized for the target processor. Accomplishing this requires making appropriate changes to a template makefile, or otherwise providing a means to link against the library.

Caveat   Using object files that lack source code only works at present with the Microsoft Visual C/C++ Compiler (MSVC). In this case, the object files must also have been created with the same compiler (i.e., MSVC).

The only restriction on S-function wrappers is that they must use the correct number of block inputs and outputs. Wrapper code may include computations, but usually these are limited to transforming (e.g., scaling or reformatting) values passed to and from the wrapped external functions.
